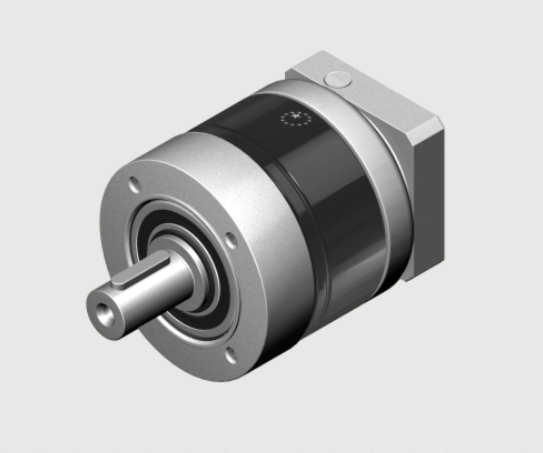

APEX PGII040-003

OVERVIEW

Output torque
T2N :8 Nm – 459 Nm
Ratios:
1-stage :3 / 4 / 5 / 7 / 10
2-stage :15 / 16 / 20 / 25 / 30 / 35 / 40 / 50 / 70 / 100
3-stage :120 / 160 / 200 / 280 / 350 / 500 / 700 / 1000
Low backlash
1-stage :≤ 6 ~ 8 arcmin
2-stage :≤ 8 ~ 10 arcmin
3-stage :≤ 10 ~ 12 arcmin
High efficiency
1-stage :≧ 97%
2-stage :≧ 94%
3-stage :≧ 91%
Easy mount
Low noise
Compact structure

SIZE

PGII 040 / PGII 060 / PGII 080 / PGII 120 / PGII 160

Gearbox_Apex_PGII series

PGII040 Gearbox size:

Ratio 3:1

PGII040-003

Ratio 4:1

PGII040-004

Ratio 5:1

PGII040-005

Ratio 7:1

PGII040-007

Ratio 9:1

PGII040-009

Ratio 10:1

PGII040-010

Ratio 12:1

PGII040-012

Ratio 15:1

PGII040-015

Ratio 16:1

PGII040-016

Ratio 20:1

PGII040-020

Ratio 25:1

PGII040-025

Ratio 30:1

PGII040-030

Ratio 35:1

PGII040-035

Ratio 40:1

PGII040-040

Ratio 50:1

PGII040-050

Ratio 70:1

PGII040-070

Ratio 70:1

PGII040-070

Ratio 100:1

PGII040-100

Ratio 120:1

PGII040-120

Ratio 160:1

PGII040-160

Ratio 200:1

PGII040-200

Ratio 280:1

PGII040-280

Ratio 350:1

PGII040-350

Ratio 500:1

PGII040-500

Ratio 700:1

PGII040-700

Ratio 1000:1

PGII040-1000
