BST EMS C.G/24/DUNKER

Description

BST EMS C.G/24/DUNKER

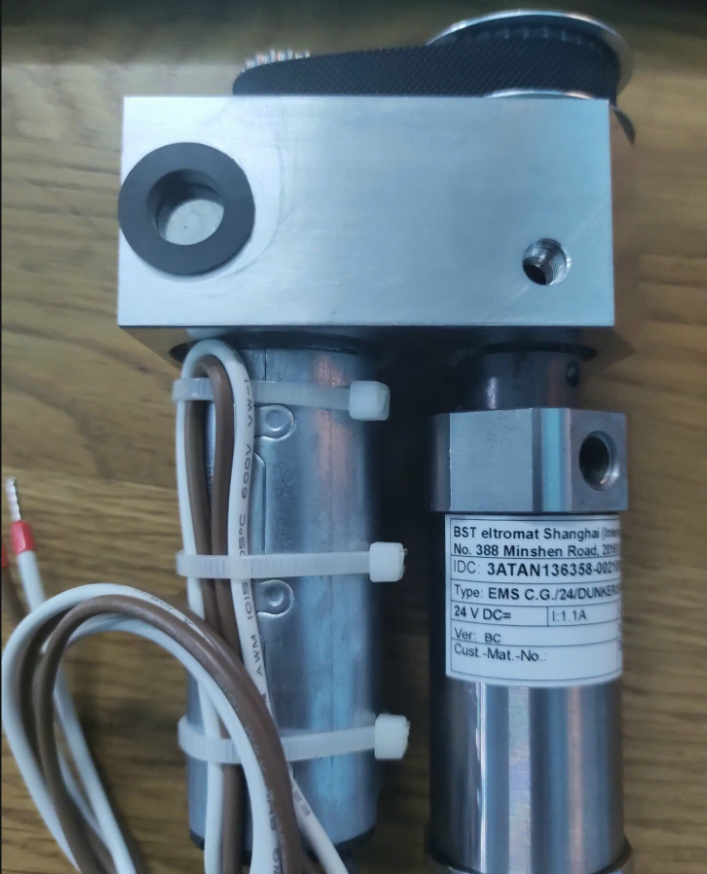

BST ELTROMAT EMS C.G/24/DUNKER

• Electromechanical actuators are implemented wherever very quick reactions to changes in the web position are necessary. The connection of the actuator can take place directly at the control unit. The ready-to-fit construction allows for quick and inexpensive installation, which is also beneficial in the retrofit of existing systems.Use the BST eltromat actuator in combination with our positioning devices for a number of web guiding tasks.

Hãng sản xuất : BST eltromat International GmbH ( Đức )

Special Features :

Complete actuator with maintenance-free drive

Plug-type connection

for linear positioning

various combinations of stroke, positioning force and positioning speed are possible

Thông số kỹ thuật :

Nominal Positioning Force F_N  : 840 (N)

Nominal Positioning Speed V_N : 10 (mm/s)

Available Stroke : 200 (mm)

Thông số kỹ thuật (cơ khí)

Noise Emission : < 70 (dB)

Protection Class : IP 54

RoHS Conformity : Yes

Thông số kỹ thuật (điện)

Nominal Voltage : 24 (VDC)

Nominal Current : 1,1 (A)

Nominal Power : 12 (W)

Electrical Connection : Only via BST eltromat connection cable

Power Supply : 12 – 24 (VDC)

Output Value   :  0 – 10 (V) ; maximal 1 mA
