Description

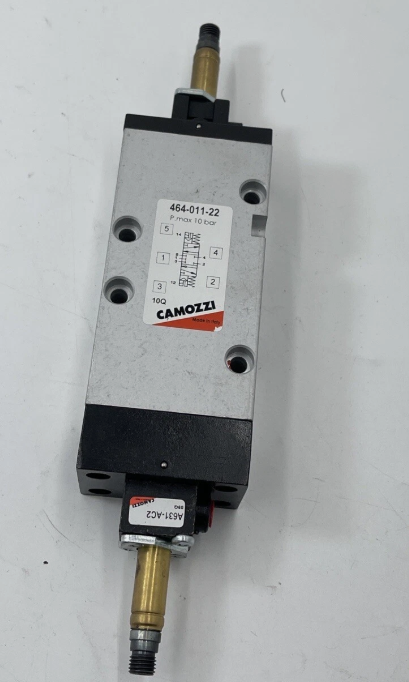

CAMOZZI 464-011-22
Model List : 454-011-22-G77, 464-011-22-U77, 454-015-22.
Model : 454-011-22IL (chưa bao gồm coil và connector).
454-016-22, 454-33, 454-34, 454-35, 454-900
CAMOZZI 464-011-22 – 5/3 Centres Closed, G1/4, Double Solenoid, Series 4 Valves and Solenoid Valves
Description
Camozzi series 4 solenoid valves have been designed in the 3/2, 5/2 and 5/3 versions and with the following two devices of actuation. Electropneumatically actuated with mechanical spring return. Electropneumatically actuated and return with external and internal air pressure supply. Series 4 valves are equipped with a manual override which allows for stable operation and mounting in arduous conditions.
5-ports 3-positions
Monostable
horizontal solen.
valve diagram EV28
Balanced spool valve
filtered air (without lubrication) as input medium
G1/4″ / 1/4″ BSPP threaded (female) pneumatic port
H258mm x W33mm x D51mm
Stainless steel spool
Technopolymer end cover
NBR PU seal
Electropneumatically actuated with mechanical spring return
Electropneumatically actuated and return with external and internal air pressure supply
Series 4 valves are equipped with a manual override which allows a stable operation / suitable for mounting in arduous conditions.
All these valves can be operated by solenoids Series U; G A8 and H8.
Pneumatically actuated valves 3/2NC become NO when the supply is on connection 3.
The different ports allow flows from 650 to 4000 Nl/min
New models available — with G3/8 ports and 1800 Nl/min flow
