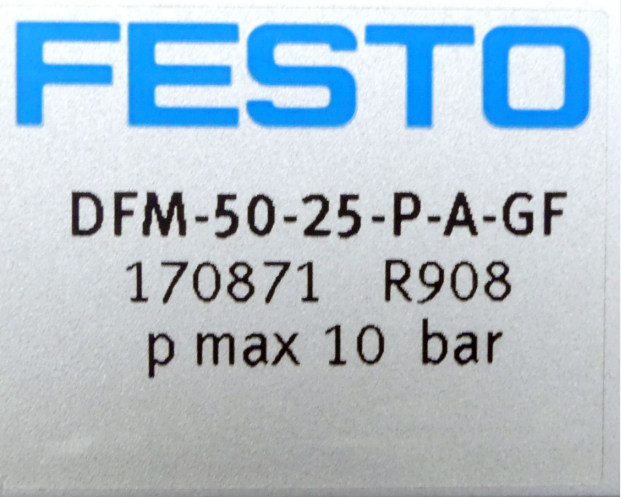

FESTO DFM-50-25-P-A-GF
Product Description
[Features]
· At a glance Drive and guide unit in a single housing
· Minimal space requirement
· Minimal mounting time
· Choice of compressed air supply ports
· Wide range of mounting options
Sturdy and precise
· Good protection against torsion
· High rigidity
· Maintenance-free
High resistance to torques and transverse loads
· With plain-bearing guide: high rigidity thanks to large-diameter guide rods and four plain-bearing bushes
With recirculating ball bearing guide:for applications involving torque loads
Configured Specifications
-
- Stroke
-
25
-
- Pneumatic connection
-
G1/4
-
- Piston diameter
-
50
-
- Guide
-
Sliding guide
-
- Max. speed
-
0.6
-
- Impact energy in the end positions
-
1
-
- Max. force Fy
-
–
-
- Max. force Fz
-
–
-
- Max. torque Mx
-
–
-
- Max. torque My
-
–
-
- Max. torque Mz
-
–
-
- Theoretical force at 6 bar, retracting
-
1057
-
- Theoretical force at 6 bar, advancing
-
1178
-
- Moving mass
-
2026
-
- Housing material
-
Wrought aluminum alloy
-
- Cover material
-
Wrought aluminum alloy
-
- Seals material
-
NBR
-
- Piston rod material
-
High-alloy stainless steel
-
- Min. Operating pressure
-
1
-
- Max. Operating pressure
-
10
-
- Min. Ambient temperature
-
-20
-
- Max. Ambient temperature
-
80
-
- Distance of centre of gravity of payload to yoke plate xs
-
50
-
- Max. static moment Mx
-
–
-
- Max. static moment My
-
–
-
- Max. permissible torque load Mx as a function of the stroke
-
14.1
-
- Max. force Fz static
-
–
-
- Max. force Fy static
-
–
-
- Center of gravity of the moving mass as a function of the stroke
-
–
-
- Max. static moment Mz
-
–
-
- Max. payload as a function of the stroke at defined distance xs
-
257
-
- Operating medium
-
Compressed air as per ISO 8573-1:2010 [7:4:4]
-
- Corrosion resistance class (CRC)
-
1 – Low corrosion stress
-
- Manufacturer part #
-
170871
-
- Weight
-
3440
-
- RoHS
-
10
