Description

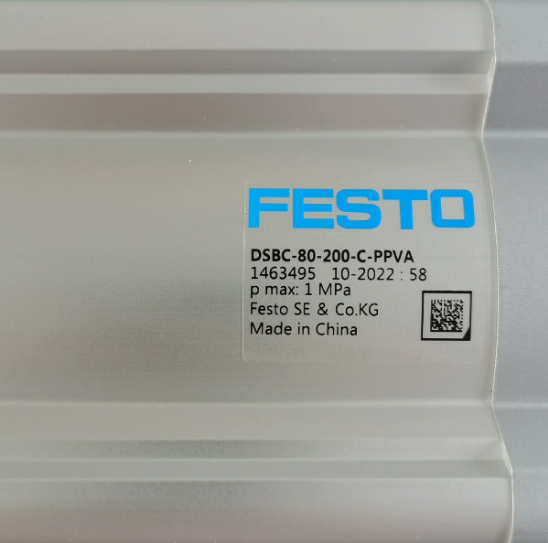

FESTO DSBC-80-200-C-PPVA 1463495
FESTO 1463495 standards-based cylinder
DSBC-80-200-C-PPVA
Specifications
| Series (DSBC) | Standards-based cylinder, double-acting, based on ISO 15552 |
|---|---|
| Protection against rotation | None |
| Running characteristics | Standard |
| Piston diameter [mm] (80) | 80 |
| Stroke [mm] (200) | 200 |
| Clamping unit (C) | Attached |
| End-position locking | None |
| Piston rod type | At one end |
| Piston rod thread type | Male thread |
| Profi le type | Sensor slot on one profi le side only |
| Cushioning (PPV) | Pneumatic cushioning, adjustable at both ends |
| Position sensing (A) | For proximity sensor |
|---|---|
| Standard | N3 In accordance with ISO |
| Corrosion protection | Standard |
| Temperature range | Standard |
| Protection against particles | Standard |
| Scraper variant | None |
| Special material properties | None |
| EU certification | None |
| Piston rod extension | None |
| Piston rod thread extension | None |
| 2123069 DSBC-32-20-PPVA-N3 | 2123085 DSBC-32-20-PPSA-N3 | 3656524 DSBC-32-250-D3-PPVA-N3 |
| 1376422 DSBC-32-25-PPVA-N3 | 1376467 DSBC-32-25-PPSA-N3 | 3656525 DSBC-32-300-D3-PPVA-N3 |
| 2123070 DSBC-32-30-PPVA-N3 | 2123086 DSBC-32-30-PPSA-N3 | 3656526 DSBC-32-320-D3-PPVA-N3 |
| 1376423 DSBC-32-40-PPVA-N3 | 1376468 DSBC-32-40-PPSA-N3 | 3660615 DSBC-40-20-D3-PPVA-N3 |
| 1376424 DSBC-32-50-PPVA-N3 | 1376469 DSBC-32-50-PPSA-N3 | 3660616 DSBC-40-25-D3-PPVA-N3 |
| 2123071 DSBC-32-60-PPVA-N3 | 2123087 DSBC-32-60-PPSA-N3 | 3660617 DSBC-40-30-D3-PPVA-N3 |
| 2123072 DSBC-32-70-PPVA-N3 | 2123088 DSBC-32-70-PPSA-N3 | 3660618 DSBC-40-40-D3-PPVA-N3 |
| 1376425 DSBC-32-80-PPVA-N3 | 1376470 DSBC-32-80-PPSA-N3 | 3660619 DSBC-40-50-D3-PPVA-N3 |
| 1376426 DSBC-32-100-PPVA-N3 | 1376471 DSBC-32-100-PPSA-N3 | 3660620 DSBC-40-60-D3-PPVA-N3 |
| 1376427 DSBC-32-125-PPVA-N3 | 1376472 DSBC-32-125-PPSA-N3 | 3660621 DSBC-40-70-D3-PPVA-N3 |
| 2123073 DSBC-32-150-PPVA-N3 | 2123089 DSBC-32-150-PPSA-N3 | 3660622 DSBC-40-80-D3-PPVA-N3 |
| 1376428 DSBC-32-160-PPVA-N3 | 1376473 DSBC-32-160-PPSA-N3 | 3660623 DSBC-40-100-D3-PPVA-N3 |
| 1376429 DSBC-32-200-PPVA-N3 | 1376474 DSBC-32-200-PPSA-N3 | 3660624 DSBC-40-125-D3-PPVA-N3 |
| 1376430 DSBC-32-250-PPVA-N3 | 1376475 DSBC-32-250-PPSA-N3 | 3660625 DSBC-40-150-D3-PPVA-N3 |
| 2123074 DSBC-32-300-PPVA-N3 | 2123090 DSBC-32-300-PPSA-N3 | 3660626 DSBC-40-160-D3-PPVA-N3 |
| 1376431 DSBC-32-320-PPVA-N3 | 1376476 DSBC-32-320-PPSA-N3 | 3660627 DSBC-40-200-D3-PPVA-N3 |
| 1376432 DSBC-32-400-PPVA-N3 | 1376477 DSBC-32-400-PPSA-N3 | 3660628 DSBC-40-250-D3-PPVA-N3 |
| 1376433 DSBC-32-500-PPVA-N3 | 1376478 DSBC-32-500-PPSA-N3 | 3660629 DSBC-40-300-D3-PPVA-N3 |
| 2123166 DSBC-40-20-PPVA-N3 | 2123780 DSBC-40-20-PPSA-N3 | 3660630 DSBC-40-320-D3-PPVA-N3 |
| 1376656 DSBC-40-25-PPVA-N3 | 1376903 DSBC-40-25-PPSA-N3 | 3659467 DSBC-50-20-D3-PPVA-N3 |
| 2123167 DSBC-40-30-PPVA-N3 | 2123781 DSBC-40-30-PPSA-N3 | 3659468 DSBC-50-25-D3-PPVA-N3 |
| 1376657 DSBC-40-40-PPVA-N3 | 1376904 DSBC-40-40-PPSA-N3 | 3659469 DSBC-50-30-D3-PPVA-N3 |
| 1376658 DSBC-40-50-PPVA-N3 | 1376905 DSBC-40-50-PPSA-N3 | 3659470 DSBC-50-40-D3-PPVA-N3 |
| 2123224 DSBC-40-60-PPVA-N3 | 2123782 DSBC-40-60-PPSA-N3 | 3659471 DSBC-50-50-D3-PPVA-N3 |
| 2123225 DSBC-40-70-PPVA-N3 | 2123783 DSBC-40-70-PPSA-N3 | 3659472 DSBC-50-60-D3-PPVA-N3 |
| 1376659 DSBC-40-80-PPVA-N3 | 1376906 DSBC-40-80-PPSA-N3 | 3659473 DSBC-50-70-D3-PPVA-N3 |
| 1376660 DSBC-40-100-PPVA-N3 | 1376907 DSBC-40-100-PPSA-N3 | 3659474 DSBC-50-80-D3-PPVA-N3 |
| 1376661 DSBC-40-125-PPVA-N3 | 1376908 DSBC-40-125-PPSA-N3 | 3659475 DSBC-50-100-D3-PPVA-N3 |
| 2123226 DSBC-40-150-PPVA-N3 | 2123784 DSBC-40-150-PPSA-N3 | 3659476 DSBC-50-125-D3-PPVA-N3 |
| 1376662 DSBC-40-160-PPVA-N3 | 1376909 DSBC-40-160-PPSA-N3 | 3659477 DSBC-50-150-D3-PPVA-N3 |
| 1376663 DSBC-40-200-PPVA-N3 | 1376910 DSBC-40-200-PPSA-N3 | 3659478 DSBC-50-160-D3-PPVA-N3 |
| 1376664 DSBC-40-250-PPVA-N3 | 1376911 DSBC-40-250-PPSA-N3 | 3659479 DSBC-50-200-D3-PPVA-N3 |
| 2123227 DSBC-40-300-PPVA-N3 | 2123785 DSBC-40-300-PPSA-N3 | 3659480 DSBC-50-250-D3-PPVA-N3 |
| 1376665 DSBC-40-320-PPVA-N3 | 1376912 DSBC-40-320-PPSA-N3 | 3659481 DSBC-50-300-D3-PPVA-N3 |
| 1376666 DSBC-40-400-PPVA-N3 | 1376913 DSBC-40-400-PPSA-N3 | 3659482 DSBC-50-320-D3-PPVA-N3 |
| 1376667 DSBC-40-500-PPVA-N3 | 1376914 DSBC-40-500-PPSA-N3 | 3657859 DSBC-63-20-D3-PPVA-N3 |
| 2098969 DSBC-50-20-PPVA-N3 | 2102628 DSBC-50-20-PPSA-N3 | 3657860 DSBC-63-25-D3-PPVA-N3 |
| 1366948 DSBC-50-25-PPVA-N3 | 1376301 DSBC-50-25-PPSA-N3 | 3657861 DSBC-63-30-D3-PPVA-N3 |
| 2098970 DSBC-50-30-PPVA-N3 | 2102629 DSBC-50-30-PPSA-N3 | 3657862 DSBC-63-40-D3-PPVA-N3 |
| 1366949 DSBC-50-40-PPVA-N3 | 1376304 DSBC-50-40-PPSA-N3 | 3657863 DSBC-63-50-D3-PPVA-N3 |
| 1366950 DSBC-50-50-PPVA-N3 | 1376305 DSBC-50-50-PPSA-N3 | 3657864 DSBC-63-60-D3-PPVA-N3 |
| 2098972 DSBC-50-60-PPVA-N3 | 2102630 DSBC-50-60-PPSA-N3 | 3657865 DSBC-63-70-D3-PPVA-N3 |
| 2098973 DSBC-50-70-PPVA-N3 | 2102631 DSBC-50-70-PPSA-N3 | 3657866 DSBC-63-80-D3-PPVA-N3 |
| 1366951 DSBC-50-80-PPVA-N3 | 1376306 DSBC-50-80-PPSA-N3 | 3657867 DSBC-63-100-D3-PPVA-N3 |
| 1366952 DSBC-50-100-PPVA-N3 | 1376307 DSBC-50-100-PPSA-N3 | 3657868 DSBC-63-125-D3-PPVA-N3 |
| 1366953 DSBC-50-125-PPVA-N3 | 1376308 DSBC-50-125-PPSA-N3 | 3657869 DSBC-63-150-D3-PPVA-N3 |
| 2098974 DSBC-50-150-PPVA-N3 | 2102632 DSBC-50-150-PPSA-N3 | 3657870 DSBC-63-160-D3-PPVA-N3 |
| 1366954 DSBC-50-160-PPVA-N3 | 1376309 DSBC-50-160-PPSA-N3 | 3657871 DSBC-63-200-D3-PPVA-N3 |
| 1366955 DSBC-50-200-PPVA-N3 | 1376310 DSBC-50-200-PPSA-N3 | 3657872 DSBC-63-250-D3-PPVA-N3 |
| 1366956 DSBC-50-250-PPVA-N3 | 1376311 DSBC-50-250-PPSA-N3 | 3657873 DSBC-63-300-D3-PPVA-N3 |
| 2098975 DSBC-50-300-PPVA-N3 | 2102633 DSBC-50-300-PPSA-N3 | 3657874 DSBC-63-320-D3-PPVA-N3 |
| 1366957 DSBC-50-320-PPVA-N3 | 1376312 DSBC-50-320-PPSA-N3 | 3656631 DSBC-80-20-D3-PPVA-N3 |
| 1366958 DSBC-50-400-PPVA-N3 | 1376313 DSBC-50-400-PPSA-N3 | 3656632 DSBC-80-25-D3-PPVA-N3 |
| 1366959 DSBC-50-500-PPVA-N3 | 1376314 DSBC-50-500-PPSA-N3 | 3656633 DSBC-80-30-D3-PPVA-N3 |
| 2125490 DSBC-63-20-PPVA-N3 | 2126684 DSBC-63-20-PPSA-N3 | 3656634 DSBC-80-40-D3-PPVA-N3 |
| 1383578 DSBC-63-25-PPVA-N3 | 1383632 DSBC-63-25-PPSA-N3 | 3656635 DSBC-80-50-D3-PPVA-N3 |
| 2125491 DSBC-63-30-PPVA-N3 | 2126685 DSBC-63-30-PPSA-N3 | 3656636 DSBC-80-60-D3-PPVA-N3 |
| 1383579 DSBC-63-40-PPVA-N3 | 1383633 DSBC-63-40-PPSA-N3 | 3656637 DSBC-80-70-D3-PPVA-N3 |
| 1383580 DSBC-63-50-PPVA-N3 | 1383634 DSBC-63-50-PPSA-N3 | 3656638 DSBC-80-80-D3-PPVA-N3 |
| 2125492 DSBC-63-60-PPVA-N3 | 2126686 DSBC-63-60-PPSA-N3 | 3656639 DSBC-80-100-D3-PPVA-N3 |
| 2125493 DSBC-63-70-PPVA-N3 | 2126687 DSBC-63-70-PPSA-N3 | 3656640 DSBC-80-125-D3-PPVA-N3 |
| 1383581 DSBC-63-80-PPVA-N3 | 1383635 DSBC-63-80-PPSA-N3 | 3656641 DSBC-80-150-D3-PPVA-N3 |
| 1383582 DSBC-63-100-PPVA-N3 | 1383636 DSBC-63-100-PPSA-N3 | 3656642 DSBC-80-160-D3-PPVA-N3 |
| 1383583 DSBC-63-125-PPVA-N3 | 1383637 DSBC-63-125-PPSA-N3 | 3656643 DSBC-80-200-D3-PPVA-N3 |
| 2125494 DSBC-63-150-PPVA-N3 | 2126688 DSBC-63-150-PPSA-N3 | 3656644 DSBC-80-250-D3-PPVA-N3 |
| 1383584 DSBC-63-160-PPVA-N3 | 1383638 DSBC-63-160-PPSA-N3 | 3656645 DSBC-80-300-D3-PPVA-N3 |
| 1383585 DSBC-63-200-PPVA-N3 | 1383639 DSBC-63-200-PPSA-N3 | 3656646 DSBC-80-320-D3-PPVA-N3 |
| 1383586 DSBC-63-250-PPVA-N3 | 1383640 DSBC-63-250-PPSA-N3 | 3659387 DSBC-32-250-D3-PPSA-N3 |
| 2125495 DSBC-63-300-PPVA-N3 | 2126689 DSBC-63-300-PPSA-N3 | 3659388 DSBC-32-300-D3-PPSA-N3 |
| 1383587 DSBC-63-320-PPVA-N3 | 1383641 DSBC-63-320-PPSA-N3 | 3659389 DSBC-32-320-D3-PPSA-N3 |
| 1383588 DSBC-63-400-PPVA-N3 | 1383642 DSBC-63-400-PPSA-N3 | 3660759 DSBC-40-20-D3-PPSA-N3 |
| 1383589 DSBC-63-500-PPVA-N3 | 1383643 DSBC-63-500-PPSA-N3 | 3660760 DSBC-40-25-D3-PPSA-N3 |
| 2126594 DSBC-80-20-PPVA-N3 | 2126636 DSBC-80-20-PPSA-N3 | 3660761 DSBC-40-30-D3-PPSA-N3 |
| 1383333 DSBC-80-25-PPVA-N3 | 1383366 DSBC-80-25-PPSA-N3 | 3660762 DSBC-40-40-D3-PPSA-N3 |
| 2126595 DSBC-80-30-PPVA-N3 | 2126637 DSBC-80-30-PPSA-N3 | 3660763 DSBC-40-50-D3-PPSA-N3 |
| 1383334 DSBC-80-40-PPVA-N3 | 1383367 DSBC-80-40-PPSA-N3 | 3660764 DSBC-40-60-D3-PPSA-N3 |
| 1383335 DSBC-80-50-PPVA-N3 | 1383368 DSBC-80-50-PPSA-N3 | 3660765 DSBC-40-70-D3-PPSA-N3 |
| 2126597 DSBC-80-60-PPVA-N3 | 2126638 DSBC-80-60-PPSA-N3 | 3660766 DSBC-40-80-D3-PPSA-N3 |
| 2126598 DSBC-80-70-PPVA-N3 | 2126639 DSBC-80-70-PPSA-N3 | 3660767 DSBC-40-100-D3-PPSA-N3 |
| 1383336 DSBC-80-80-PPVA-N3 | 1383369 DSBC-80-80-PPSA-N3 | 3660768 DSBC-40-125-D3-PPSA-N3 |
| 1383337 DSBC-80-100-PPVA-N3 | 1383370 DSBC-80-100-PPSA-N3 | 3660769 DSBC-40-150-D3-PPSA-N3 |
| 1383338 DSBC-80-125-PPVA-N3 | 1383371 DSBC-80-125-PPSA-N3 | 3660770 DSBC-40-160-D3-PPSA-N3 |
| 2126599 DSBC-80-150-PPVA-N3 | 2126640 DSBC-80-150-PPSA-N3 | 3660771 DSBC-40-200-D3-PPSA-N3 |
| 1383339 DSBC-80-160-PPVA-N3 | 1383372 DSBC-80-160-PPSA-N3 | 3660772 DSBC-40-250-D3-PPSA-N3 |
| 1383340 DSBC-80-200-PPVA-N3 | 1383373 DSBC-80-200-PPSA-N3 | 3660773 DSBC-40-300-D3-PPSA-N3 |
| 1383341 DSBC-80-250-PPVA-N3 | 1383374 DSBC-80-250-PPSA-N3 | 3660774 DSBC-40-320-D3-PPSA-N3 |
| 2126600 DSBC-80-300-PPVA-N3 | 2126641 DSBC-80-300-PPSA-N3 | 3659491 DSBC-50-20-D3-PPSA-N3 |
| 1383342 DSBC-80-320-PPVA-N3 | 1383375 DSBC-80-320-PPSA-N3 | 3659492 DSBC-50-25-D3-PPSA-N3 |
| 1383343 DSBC-80-400-PPVA-N3 | 1383376 DSBC-80-400-PPSA-N3 | 3659493 DSBC-50-30-D3-PPSA-N3 |
| 1383344 DSBC-80-500-PPVA-N3 | 1383377 DSBC-80-500-PPSA-N3 | 3659494 DSBC-50-40-D3-PPSA-N3 |
| 1463254 DSBC-32-…-PPVA-N3 | 1463252 DSBC-32-…-PPSA-N3 | 3659495 DSBC-50-50-D3-PPSA-N3 |
| 1462834 DSBC-40-…-PPVA-N3 | 1462835 DSBC-40-…-PPSA-N3 | 3659496 DSBC-50-60-D3-PPSA-N3 |
| 1463766 DSBC-50-…-PPVA-N3 | 1463768 DSBC-50-…-PPSA-N3 | 3659497 DSBC-50-70-D3-PPSA-N3 |
| 1463483 DSBC-63-…-PPVA-N3 | 1463481 DSBC-63-…-PPSA-N3 | 3659498 DSBC-50-80-D3-PPSA-N3 |
| 1463504 DSBC-80-…-PPVA-N3 | 1463500 DSBC-80-…-PPSA-N3 | 3659499 DSBC-50-100-D3-PPSA-N3 |
| 1384804 DSBC-100-25-PPVA-N3 | 1384890 DSBC-100-25-PPSA-N3 | 3659500 DSBC-50-125-D3-PPSA-N3 |
| 1384805 DSBC-100-40-PPVA-N3 | 1384891 DSBC-100-40-PPSA-N3 | 3659501 DSBC-50-150-D3-PPSA-N3 |
| 1384806 DSBC-100-50-PPVA-N3 | 1384892 DSBC-100-50-PPSA-N3 | 3659502 DSBC-50-160-D3-PPSA-N3 |
| 1384807 DSBC-100-80-PPVA-N3 | 1384893 DSBC-100-80-PPSA-N3 | 3659503 DSBC-50-200-D3-PPSA-N3 |
| 1384808 DSBC-100-100-PPVA-N3 | 1384894 DSBC-100-100-PPSA-N3 | 3659504 DSBC-50-250-D3-PPSA-N3 |
| 1384809 DSBC-100-125-PPVA-N3 | 1384895 DSBC-100-125-PPSA-N3 | 3659505 DSBC-50-300-D3-PPSA-N3 |
| 1384810 DSBC-100-160-PPVA-N3 | 1384896 DSBC-100-160-PPSA-N3 | 3659506 DSBC-50-320-D3-PPSA-N3 |
| 1384811 DSBC-100-200-PPVA-N3 | 1384897 DSBC-100-200-PPSA-N3 | 3657811 DSBC-63-20-D3-PPSA-N3 |
| 1384812 DSBC-100-250-PPVA-N3 | 1384898 DSBC-100-250-PPSA-N3 | 3657812 DSBC-63-25-D3-PPSA-N3 |
| 1384813 DSBC-100-320-PPVA-N3 | 1384899 DSBC-100-320-PPSA-N3 | 3657813 DSBC-63-30-D3-PPSA-N3 |
| 1384814 DSBC-100-400-PPVA-N3 | 1384900 DSBC-100-400-PPSA-N3 | 3657814 DSBC-63-40-D3-PPSA-N3 |
| 1384815 DSBC-100-500-PPVA-N3 | 1384901 DSBC-100-500-PPSA-N3 | 3657815 DSBC-63-50-D3-PPSA-N3 |
| 1463598 DSBC-100-…-PPVA-N3 | 1463558 DSBC-100-…-PPSA-N3 | 3657816 DSBC-63-60-D3-PPSA-N3 |
| 1804956 DSBC-125-25-PPVA-N3 | 1804661 DSBC-125-25-PPSA-N3 | 3657817 DSBC-63-70-D3-PPSA-N3 |
| 1804957 DSBC-125-40-PPVA-N3 | 1804662 DSBC-125-40-PPSA-N3 | 3657818 DSBC-63-80-D3-PPSA-N3 |
| 1804958 DSBC-125-50-PPVA-N3 | 1804663 DSBC-125-50-PPSA-N3 | 3657819 DSBC-63-100-D3-PPSA-N3 |
| 1804959 DSBC-125-80-PPVA-N3 | 1804664 DSBC-125-80-PPSA-N3 | 3657820 DSBC-63-125-D3-PPSA-N3 |
| 1804960 DSBC-125-100-PPVA-N3 | 1804665 DSBC-125-100-PPSA-N3 | 3657821 DSBC-63-150-D3-PPSA-N3 |
| 1804961 DSBC-125-125-PPVA-N3 | 1804666 DSBC-125-125-PPSA-N3 | 3657822 DSBC-63-160-D3-PPSA-N3 |
| 1804962 DSBC-125-160-PPVA-N3 | 1804667 DSBC-125-160-PPSA-N3 | 3657823 DSBC-63-200-D3-PPSA-N3 |
| 1804963 DSBC-125-200-PPVA-N3 | 1804668 DSBC-125-200-PPSA-N3 | 3657824 DSBC-63-250-D3-PPSA-N3 |
| 1804964 DSBC-125-250-PPVA-N3 | 1804669 DSBC-125-250-PPSA-N3 | 3657825 DSBC-63-300-D3-PPSA-N3 |
| 1804965 DSBC-125-320-PPVA-N3 | 1804671 DSBC-125-320-PPSA-N3 | 3657826 DSBC-63-320-D3-PPSA-N3 |
| 1804966 DSBC-125-400-PPVA-N3 | 1804672 DSBC-125-400-PPSA-N3 | 3656854 DSBC-80-20-D3-PPSA-N3 |
| 1804967 DSBC-125-500-PPVA-N3 | 1804673 DSBC-125-500-PPSA-N3 | 3656855 DSBC-80-25-D3-PPSA-N3 |
| 1755348 DSBC-125-…-PPVA-N3 | 1755619 DSBC-125-…-PPSA-N3 | 3656856 DSBC-80-30-D3-PPSA-N3 |
| 3656511 DSBC-32-20-D3-PPVA-N3 | 3659374 DSBC-32-20-D3-PPSA-N3 | 3656857 DSBC-80-40-D3-PPSA-N3 |
| 3656512 DSBC-32-25-D3-PPVA-N3 | 3659375 DSBC-32-25-D3-PPSA-N3 | 3656858 DSBC-80-50-D3-PPSA-N3 |
| 3656513 DSBC-32-30-D3-PPVA-N3 | 3659376 DSBC-32-30-D3-PPSA-N3 | 3656859 DSBC-80-60-D3-PPSA-N3 |
| 3656514 DSBC-32-40-D3-PPVA-N3 | 3659377 DSBC-32-40-D3-PPSA-N3 | 3656860 DSBC-80-70-D3-PPSA-N3 |
| 3656515 DSBC-32-50-D3-PPVA-N3 | 3659378 DSBC-32-50-D3-PPSA-N3 | 3656861 DSBC-80-80-D3-PPSA-N3 |
| 3656516 DSBC-32-60-D3-PPVA-N3 | 3659379 DSBC-32-60-D3-PPSA-N3 | 3656862 DSBC-80-100-D3-PPSA-N3 |
| 3656517 DSBC-32-70-D3-PPVA-N3 | 3659380 DSBC-32-70-D3-PPSA-N3 | 3656863 DSBC-80-125-D3-PPSA-N3 |
| 3656518 DSBC-32-80-D3-PPVA-N3 | 3659381 DSBC-32-80-D3-PPSA-N3 | 3656864 DSBC-80-150-D3-PPSA-N3 |
| 3656519 DSBC-32-100-D3-PPVA-N3 | 3659382 DSBC-32-100-D3-PPSA-N3 | 3656865 DSBC-80-160-D3-PPSA-N3 |
| 3656520 DSBC-32-125-D3-PPVA-N3 | 3659383 DSBC-32-125-D3-PPSA-N3 | 3656866 DSBC-80-200-D3-PPSA-N3 |
| 3656521 DSBC-32-150-D3-PPVA-N3 | 3659384 DSBC-32-150-D3-PPSA-N3 | 3656867 DSBC-80-250-D3-PPSA-N3 |
| 3656522 DSBC-32-160-D3-PPVA-N3 | 3659385 DSBC-32-160-D3-PPSA-N3 | 3656868 DSBC-80-300-D3-PPSA-N3 |
| 3656523 DSBC-32-200-D3-PPVA-N3 | 3659386 DSBC-32-200-D3-PPSA-N3 | 3656869 DSBC-80-320-D3-PPSA-N3 |
