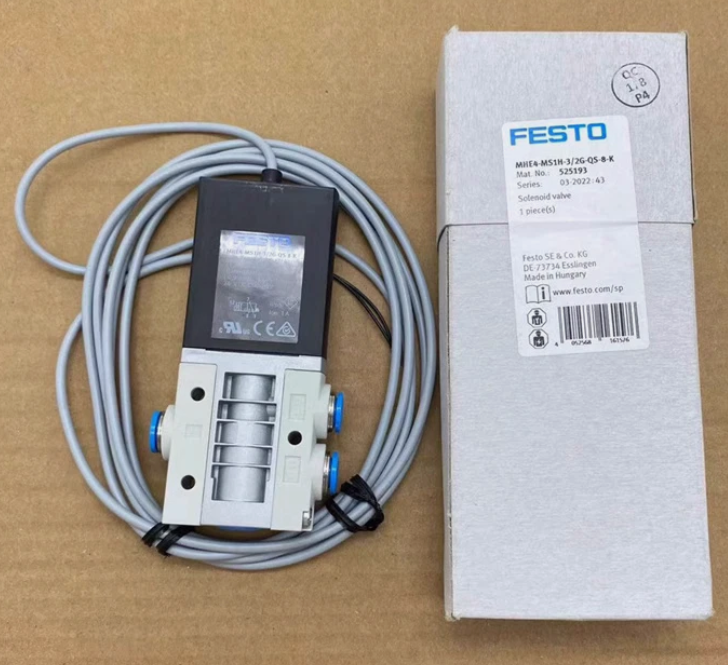

Van điện từ MHE4-MS1H-3/2G-QS-8-K (525193)
Thông số kỹ thuật van điện từ Festo MHE4-MS1H-3/2G-QS-8-K – Festo 525193 solenoid valve
| Chức năng van | 3/2 closed monostable |
| Kiểu truyền động | Điện |
| Đường kính mm | 18 |
| Tốc độ dòng dòng khí [l/min] | 400 |
| Áp lực vận hành [bar] | -0.9 to 8 |
| Thiết lập | Pressure-relieved poppet valve |
| Đặt lại cài đặt | Mechanical spring |
| Cấp bảo vệ | IP65 |
| Cấp phép bởi | RCM mark c UL us – Recognized (OL) |
| Đường kính ngoài mm [mm] | 4 |
| Kích thước cao độ [mm] | 24 |
| Chức năng xả | Can be throttled |
| Niêm phong | Soft |
| Nguyên lý hoạt động | arbitrary |
| Thao tác bằng tay | tentative |
| Loại điều khiển | Direct |
| Dòng chảy | Reversible with limitations |
| Overlap | negative Overlap |
| Áp lực vận hành reversible [bar] | -0.9 to 1 |
| Max. switching frequency [Hz] | 210 |
| Thời gian đóng [ms] | 3,5 |
| Thời gian mở [ms] | 3,5 |
| Thời gian bật nguồn | 100 % |
| Điện áp cuộn hút | 24 V DC: Low current phase 2.125 W, high current phase 8,5 W |
| Dao động điện áp cho phép | ± 10 % |
| Vận hành | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Thông tin về phương tiện vận hành và kiểm soát | Oiled operation possible (required in further operations) |
| Cường độ dao động | Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Chống sốc | Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
| Lớp chống ăn mòn KBK | 2 – moderate corrosion stress |
| Nhiệt độ trung bình [°C] | -5 to 60 |
| Nhiệt độ môi trường xung quanh [°C] | -5 to 60 |
| Khối lượng [g] | 270 |
| Điện connection | cable |
| Loại buộc | With throughway bores |
| Ren nối khí 1 | QS-8 |
| Ren nối khí 2 | QS-8 |
| Ren nối khí 3 | QS-8 |
| Thông tin vật liệu | Copper and PTFE-free RoHs compliant |
| Vật liệu gioăng | HNBR NBR |
| Vật liệu thân | Coated Zinc pressure cast |
| Screws material | Steel zinc plating |
| KC-mark | KC-EMV |
| CE certificate (see declaration of conformity) | to EU EMC directive |
| Reverse polarity protection | Bipolar |
| Additional functions | Spark suppression Holding current reduction protection circuit |
| Tolerance shifting time off | +10 %/-40 % |
| Tolerance shifting time on | +10%/-30% |
| Shifting time scatter from 1 Hz [ms] | 0,3 |
| Cable length [MTR] | 2,5 |
| Cable sleeve material | PUR |
