Description

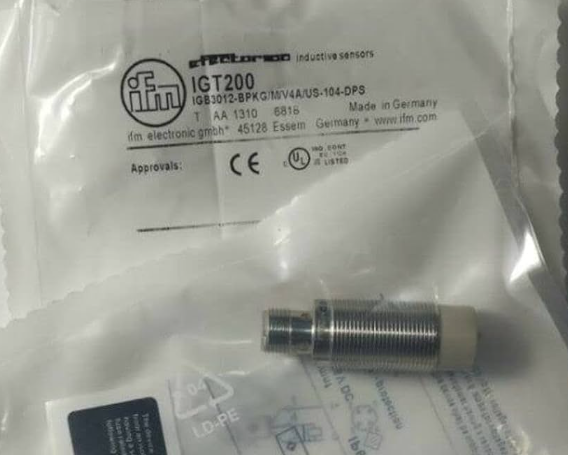

IFM IGT200
IFM IGT200, IGT204, PA3224
| Product characteristics | |||
|---|---|---|---|
| Electrical design | PNP | ||
| Output function | normally open | ||
| Sensing range [mm] | 12 | ||
| Housing | threaded type | ||
| Dimensions [mm] | M18 x 1 / L = 51 | ||
| Application | |||
| Special feature | Gold-plated contacts; Increased sensing range | ||
| Application | regular cleaning processes | ||
| Electrical data | |||
| Operating voltage [V] | 10…36 DC | ||
| Current consumption [mA] | 10; (24 V) | ||
| Protection class | II | ||
| Reverse polarity protection | yes | ||
| Outputs | |||
| Electrical design | PNP | ||
| Output function | normally open | ||
| Max. voltage drop switching output DC [V] | 2.5 | ||
| Permanent current rating of switching output DC [mA] | 100 | ||
| Switching frequency DC [Hz] | 300 | ||
| Short-circuit protection | yes | ||
| Type of short-circuit protection | pulsed | ||
| Overload protection | yes | ||
| Detection zone | |||
| Sensing range [mm] | 12 | ||
| Real sensing range Sr [mm] | 12 ± 10 % | ||
| Operating distance [mm] | 0…9.7 | ||
| Increased sensing range | yes | ||
| Accuracy / deviations | |||
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminium: 0.4 / copper: 0.3 | ||
| Hysteresis [% of Sr] | 3…15 | ||
| Switch point drift [% of Sr] | -10…10 | ||
| Operating conditions | |||
| Ambient temperature [°C] | 0…100 | ||
| Protection | IP 68; IP 69K; (“COP”) | ||
| Mechanical data | |||
| Weight [g] | 44.2 | ||
| Housing | threaded type | ||
| Mounting | non-flush mountable | ||
| Dimensions [mm] | M18 x 1 / L = 51 | ||
| Thread designation | M18 x 1 | ||
| Materials | threaded sleeve: stainless steel (1.4404 / 316L); sensing face: PEEK | ||
| Displays / operating elements | |||
| Display |
|
||
