Description

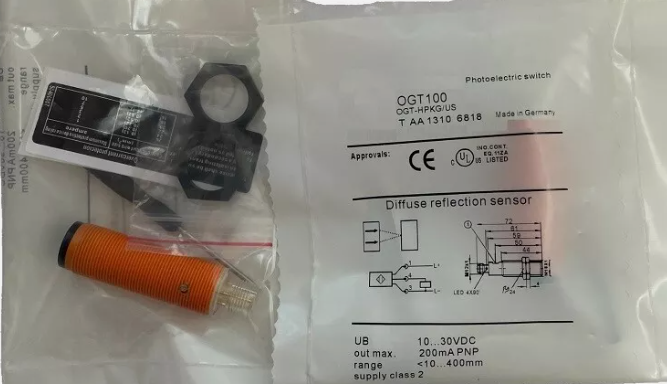

IFM OGT100
Diffuse reflection sensor
OGT100
OGT-HPKG/US
- Very long range
- For use in conveying and materials handling
- Intuitive setting of the sensitivity via potentiometer
- Excellent price/performance ratio
- Low-cost alternative to units with metal housing
| Product characteristics | |||
|---|---|---|---|
| Type of light | red light | ||
| Housing | threaded type | ||
| Dimensions [mm] | M18 x 1 / L = 44 | ||
| Application | |||
| Function principle | Diffuse reflection sensor | ||
| Electrical data | |||
| Operating voltage [V] | 10…30 DC | ||
| Current consumption [mA] | 20 | ||
| Protection class | III | ||
| Reverse polarity protection | yes | ||
| Type of light | red light | ||
| Wave length [nm] | 645 | ||
| Outputs | |||
| Electrical design | PNP | ||
| Output function | light-on mode | ||
| Max. voltage drop switching output DC [V] | 2.5 | ||
| Permanent current rating of switching output DC [mA] | 200 | ||
| Switching frequency DC [Hz] | 1000 | ||
| Short-circuit protection | yes | ||
| Overload protection | yes | ||
| Detection zone | |||
| Range [mm] | 10…400; (white paper 200 x 200 mm 90% remission) | ||
| Range adjustable | yes | ||
| Max. light spot diameter [mm] | 25 | ||
| Light spot dimensions refer to | at maximum range | ||
| Monitoring range final value [mm] | 70…400 | ||
| Operating conditions | |||
| Ambient temperature [°C] | -25…60 | ||
| Protection | IP 65; (in conjunction with a corresponding connector) | ||
| Mechanical data | |||
| Weight [g] | 14.8 | ||
| Housing | threaded type | ||
| Dimensions [mm] | M18 x 1 / L = 44 | ||
| Thread designation | M18 x 1 | ||
| Materials | housing: ABS | ||
| Lens material |
|
||
| Displays / operating elements | |||
| Display |
|
||
| Operating elements |
|
||
| Accessories | |||
| Accessories (supplied) |
|
||
| Remarks | |||
| Pack quantity | 1 pcs. | ||
| Electrical connection | |||
| Connection | Connector: 1 x M12 | ||
