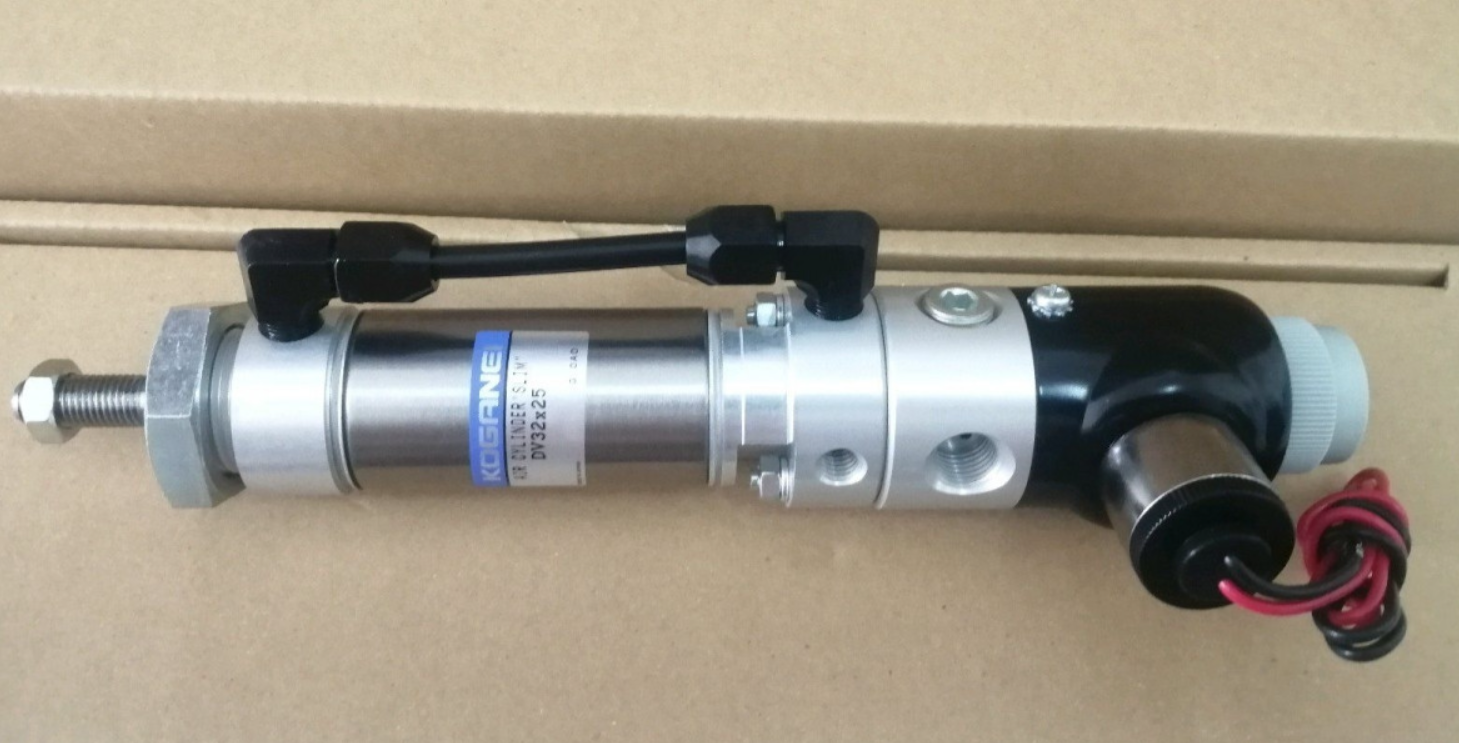

KOGANEI DV32X25 AC200V

Description

KOGANEI DV32X25 AC200V

KOGANEI DV32x75 AC200V

Part Number : DV32X25 AC200V Drive equipment cylinder slim cylinder series

Slim cylinder of ø16 to 63 (cylinder diameter 16 to 63 mm).
[Features]
·High quality and highly reliable design using stainless steel tube is standard for compact and medium cylinders
·A wide variety of lineup of 21 variations in all
·Supports high-speed operation of 700 mm/s (ø50, 63 (cylinder diameter 50, 63 mm) is 500 mm/s)
·Uses durable piston packing
·Sensor switch can be retrofitted
·High mounting accuracy and easy mounting work
[Applications]
・ Compatible with pneumatic equipment and production lines in all industries

Configured Specifications

• Cylinder I.D: D –

• Stroke: L 25

• Rod Operation Method Single Rods

• Main Body Shape [Standard] Standard

• Cylinder Operation Method Double Acting

• Additional Function With speed adjustment function

• Environment, Applications Standard

• Operating Temperature 0 to 60

• End Locking No

• Valves Presence

• Additional Function, Standard Cylinder Specifications –

• Presence of Bellows None

• With/without adjustable cushion No

• Head cover specification Standard head

• Stroke adjustment No

• Sensor specifications None

• Mounting Type Basic type

• Rod Tip Specification No (Standard)

• Rod Tip Metal Fitting None

• Mounting Valve Series VPS062-4E1-70

• Mounting Valve Option No

• Sensor Switches None

• Lead Wire Length None

• Number of sensor switches None

• Electromagnetic valve voltage AC200V

• Scraper No

• Lubrication –

• Bumper No (Standard)

• Pilot No (Standard)

• Max. Operating Pressure 0.9

• Stroke L2 –

• End Keep Position No
