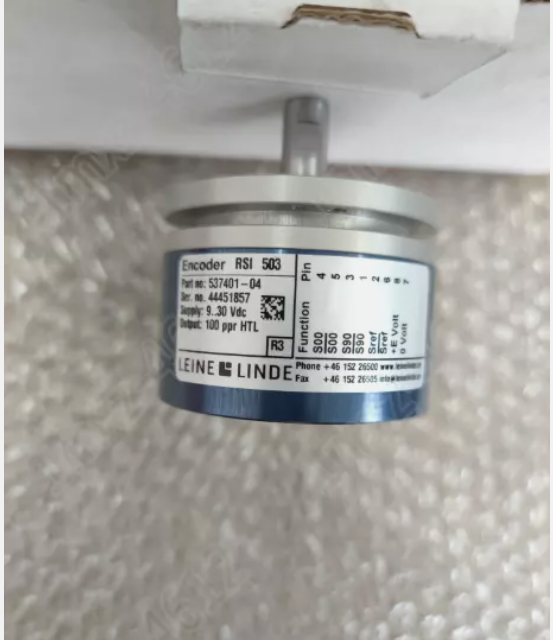

LEINE LINDE RSI 503 537401-04

Description

LEINE LINDE RSI 503 537401-04

Tính năng và ưu điểm LEINE LINDE RSI 503 Encoder

• Bộ mã hóa trục chắc chắn, tăng dần
• Bộ mã hóa chắc chắn với trục rắn
• Đầu ra được bảo vệ ngắn mạch
• IP67 ở vỏ, IP66 ở đầu vào trục

Bộ mã hóa trục chắc chắn, tăng dần

• Bộ mã hóa chắc chắn với trục rắn
• Đầu ra được bảo vệ ngắn mạch
• IP67 ở vỏ, IP66 ở đầu vào trục

Thông số kỹ thuật LEINE LINDE RSI 503 Encoder

Mechanical data	Part Number 392783-01	Part Number 392783-06	Part Number 507664-13	Part Number 507670-54	Part Number 507692-01
Operating temperature	-40 °C…+70 °C	-40 °C…+70 °C	-40 °C…+70 °C	-40 °C…+70 °C	-40 °C…+70 °C
Ingress protection class [IEC 60529]	IP67 (IP66 at shaft inlet)	IP67 (IP66 at shaft inlet)	IP67 (IP66 at shaft inlet)	IP67 (IP66 at shaft inlet)	IP67 (IP66 at shaft inlet)
Vibration [IEC 60068-2-64]	≤ 300 m/s²	≤ 300 m/s²	≤ 300 m/s²	≤ 300 m/s²	≤ 300 m/s²
Shock [IEC 60068-2-27]	≤ 2000 m/s²	≤ 2000 m/s²	≤ 2000 m/s²	≤ 2000 m/s²	≤ 2000 m/s²
Shaft load (axial/radial)	50 N / 60 N	50 N / 60 N	50 N / 60 N	50 N / 60 N	50 N / 60 N
Rotational speed max	6000 rpm	6000 rpm	6000 rpm	6000 rpm	6000 rpm
Shaft material	Stainless steel	Stainless steel	Stainless steel	Stainless steel	Stainless steel
Cover material	Aluminium (anodized)	Aluminium (anodized)	Aluminium (anodized)	Aluminium (anodized)	Aluminium (anodized)
Weight	300 g	300 g	300 g	300 g	300 g
Encoder configuration
Type	RSI	RSI	RSI	RSI	RSI
Model	503 Standard	503 Standard	503 Standard	503 Standard	503 Standard
Shaft type	Ø10 mm round	Ø10 mm round	Ø10 mm round	Ø10 mm round	Ø10 mm round
Flange type	Clamping flange (61-type)	Clamping flange (61-type)	Clamping flange (61-type)	52-flange	52-flange
Resolution	1024 ppr	2048 ppr	2048 ppr	5000 ppr	1024 ppr
Power supply	9-30 Vdc	9-30 Vdc	9-30 Vdc	9-30 Vdc	9-30 Vdc
Output signal	HTL	HTL	HTL	HTL	HTL
Connection type	Cable	Cable	CM23 connector 12-pin	Cable	PT connector 8-pin
Connecting direction	Radial	Radial	Radial	Radial	Axial
Cable length	1.50 m	1.50 m		10.00 m	1.50 m
Number of channels		6 (S00, S00, S90, S90, Sref, Sref)	6 (S00, S00, S90, S90, Sref, Sref)	6 (S00, S00, S90, S90, Sref, Sref)	6 (S00, S00, S90, S90, Sref, Sref)
Electrical data
Polarity protected	Yes	Yes	Yes	Yes	Yes
Short circuit protected outputs	Yes	Yes	Yes	Yes	Yes
Current consumption (No load)	50 mA at 24 Vdc (Max. 75 mA)	50 mA at 24 Vdc (Max. 75 mA)	50 mA at 24 Vdc (Max. 75 mA)	50 mA at 24 Vdc (Max. 75 mA)	50 mA at 24 Vdc (Max. 75 mA)
Incremental output load (max)	± 40 mA	± 40 mA	± 40 mA	± 40 mA	± 40 mA
Output frequency max	300 kHz	300 kHz	300 kHz	300 kHz	300 kHz
Cable length max	100 m at 100 kHz	100 m at 100 kHz	100 m at 100 kHz	100 m at 100 kHz	100 m at 100 kHz
Channel separation	90 ºel ± 25 ºel	90 ºel ± 25 ºel	90 ºel ± 25 ºel	90 ºel ± 25 ºel	90 ºel ± 25 ºel
Dividing error	± 50 ºel	± 50 ºel	± 50 ºel	± 50 ºel	± 50 ºel
MTTFd value [Years]	773	773	1111	773	773
PFHd value [h-1]	5,85E-07	5,85E-07		5,85E-07	5,85E-07



Mechanical data	Part Number 515398-20	Part Number 515499-04	Part Number 531890-03	Part Number 537401-04
Operating temperature	-40 °C…+70 °C	-40 °C…+70 °C	-40 °C…+70 °C	-40 °C…+70 °C
Ingress protection class [IEC 60529]	IP67 (IP66 at shaft inlet)	IP67 (IP66 at shaft inlet)	IP67 (IP66 at shaft inlet)	IP67 (IP66 at shaft inlet)
Vibration [IEC 60068-2-64]	≤ 300 m/s²	≤ 300 m/s²	≤ 300 m/s²	≤ 300 m/s²
Shock [IEC 60068-2-27]	≤ 2000 m/s²	≤ 2000 m/s²	≤ 2000 m/s²	≤ 2000 m/s²
Shaft load (axial/radial)	50 N / 60 N	50 N / 60 N	50 N / 60 N	50 N / 60 N
Rotational speed max	6000 rpm	6000 rpm	6000 rpm	6000 rpm
Shaft material	Stainless steel	Stainless steel	Stainless steel	Stainless steel
Cover material	Aluminium (anodized)	Aluminium (anodized)	Aluminium (anodized)	Aluminium (anodized)
Weight	300 g	300 g	300 g	300 g
Encoder configuration
Type	RSI	RSI	RSI	RSI
Model	503 Standard	503 Standard	503 Standard	503 Standard
Shaft type	Ø6 mm with partial flat	Ø10 mm round	Ø6 mm with partial flat	Ø10 mm with partial flat
Flange type	Synchro flange (63-type)	Clamping flange (61-type)	Synchro flange (63-type)	51-flange
Resolution	500 ppr	2048 ppr	2048 ppr	100 ppr
Power supply	9-30 Vdc	9-30 Vdc	9-30 Vdc	9-30 Vdc
Output signal	HTL	RS442	RS442	HTL
Connection type	Cable	Cable	M23 connector 12-pin	M12 connector 8-pin
Connecting direction	Radial	Radial	Radial	Radial
Cable length	1.50 m	1.50 m
Number of channels	6 (S00, S00\, S90, S90\, Sref, Sref\)	6 (S00, S00\, S90, S90\, Sref, Sref\)	6 (S00, S00\, S90, S90\, Sref, Sref\)	6 (S00, S00\, S90, S90\, Sref, Sref\)
Electrical data
Polarity protected	Yes	Yes	Yes	Yes
Short circuit protected outputs	Yes	Yes	Yes	Yes
Current consumption (No load)	50 mA at 24 Vdc (Max. 75 mA)	50 mA at 24 Vdc (Max. 75 mA)	50 mA at 24 Vdc (Max. 75 mA)	50 mA at 24 Vdc (Max. 75 mA)
Incremental output load (max)	± 40 mA	± 40 mA	± 40 mA	± 40 mA
Output frequency max	300 kHz	300 kHz	300 kHz	300 kHz
Cable length max	100 m at 100 kHz	1000m	100 m at 100 kHz	100 m at 100 kHz
Channel separation	90 ºel ± 25 ºel	90 ºel ± 25 ºel	90 ºel ± 25 ºel	90 ºel ± 25 ºel
Dividing error	± 50 ºel	± 50 ºel	± 50 ºel	± 50 ºel
MTTFd value [Years]	773		773	1111
PFHd value [h-1]	5,85E-07		5,85E-07

• Robust encoder with solid shaft
• Short­circuited protected outputs
• IP67 at housing, IP66 at shaft inlet

Technical data:
Operating temperature ­40 °C .. +70 °C
Ingress protection class [IEC 60529] IP67 (IP66 at shaft inlet)
Vibration [IEC 60068­2­6] ≤ 300 m/s²
Shock [IEC 60068­2­27] ≤ 2000 m/s²
Cover material Aluminium
Weight 300 g
Shaft load (axial/radial) 50 N / 60 N
Rotational speed max 6000 rpm
Shaft material Stainless steel
Short circuit protected Yes
Polarity protected Yes
Current consumption 50 mA at 24 Vdc (Max. 75 mA)
Output load ± 40 mA
Output frequency max 300 kHz
Cable length max 100 m at 100 kHz
Channel separation 90° el ± 25° el
Dividing error ±50° el

Encoder configuration:
Type RSI
Model 503 Standard
Shaft type Ø10 with partial flat
Flange type 51­flange
Resolution 100
Power supply 9­30 Vdc
Output signal HTL
Connection type M12 connector 8­pin
Connecting direction Radial
