REER MRFID CSIAM1

Description

REER MRFID CSIAM1 P/N 1292010

OVERVIEW
The application of Magnus RFID sensors can be extremely wide thanks to the compact and versatile design.

The diferent design anh technology option and the com-plete mechanical compatibility with Magnus MG series make this product extremely valuable for users

MAGNETIC SAFETY SENSORS

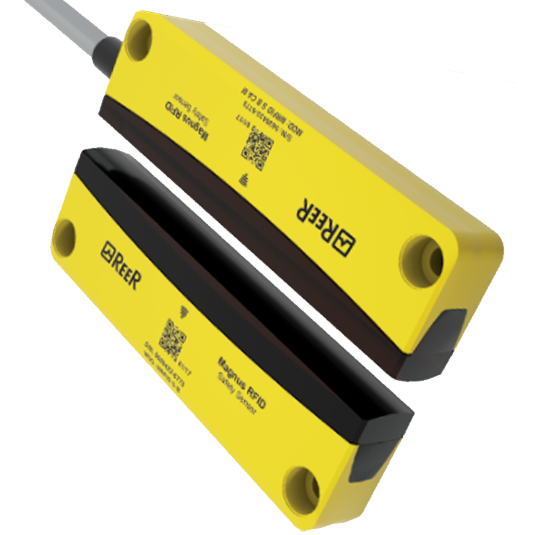

MAGNUS RFID MRFID C S IA M
Combo (Sensor + Actuator) 22 mm interaxis. Individual coding actuator. EDM input. Autometic restart. M12 connector

Technical data:
Family MAGNUS RFID
Code 1292010
Safety level (SIL / PL) SIL 3 – SILCL3 / PL e – Cat. 4
Power supply (VDC) 24 +7- 10%
Connector Pigtail M12 8-pole
Safety inputs 2
Response time (ms) 75
Safety outputs 2
Materials suitable for food applications yes
Degree of protection IP 67 / IP 69K (connector excluded)
Operating temperature (°C) from -25 to 70
Test outputs 1
LED signalling yes – e colour LED
Dimensions HxWxD (mm) 26x36x13
Fastening M4 screws countersunk
Operation mode yes
Switching distance (mm) from 8 to 18 minimum ari-gap 0,5 misalignment actuator max. 8 mm
Housing PBT / PC rectangular
Serial connection max. 30 sensors
Monitored Start/Restart automatic
Min. switching current at 24 VDC (mA) 400 mA max.
Technical Features Max. switching voltage: 24 V +/- 0,2 V Switching frequency: 3 Hz Reversal polarity and
short circuiti protection
Actuation technology Individual coding – The actuator is programmed via teach-in and permanently assigned
to the sensor during set-up (the process can be repeated if necessary)

Related products:
MAGNUS RFID EC S4 1 – Male-female extension cable, M12 4-pole straight connector. Lenght 1 m
MAGNUS RFID EC S4 3 – Male-female extension cable, M12 4-pole straight connector. Lenght 3 m
MAGNUS RFID EC S4 5 – Male-female extension cable, M12 4-pole straight connector. Lenght 5 m

MAGNUS RFID EC S4 10 – Male-female extension cable, M12 4-pole straight connector. Lenght 10 m
MAGNUS RFID EC S8 1 – Male-female extension cable, M12 8-pole straight connector. Lenght 1 m
MAGNUS RFID EC S8 3 – Male-female extension cable, M12 8-pole straight connector. Lenght 3 m
MAGNUS RFID EC S8 5 – Male-female extension cable, M12 8-pole straight connector. Lenght 5 m
MAGNUS RFID EC S8 10 – Male-female extension cable, M12 8-pole straight connector. Lenght 10 m
MAGNUS RFID EC L4 1 – Male-female extension cable, M12 4-pole angled 90° connector. Lenght 1 m
MAGNUS RFID EC L4 3 – Male-female extension cable, M12 4-pole angled 90° connector. Lenght 3 m
MAGNUS RFID EC L4 5 – Male-female extension cable, M12 4-pole angled 90° connector. Lenght 5 m
MAGNUS RFID EC L4 10 – Male-female extension cable, M12 4-pole angled 90° connector. Lenght 10 m
MAGNUS RFID EC C4 1 – Female extension cable, M12 4-pole straight connector. Lenght 1 m
MAGNUS RFID EC C4 3 – Female extension cable, M12 4-pole straight connector. Lenght 3 m
MAGNUS RFID EC C4 5 – Female extension cable, M12 4-pole straight connector. Lenght 5 m
MAGNUS RFID EC C8 5 – Female extension cable, M12 8-pole straight connector. Lenght 5 m
MAGNUS RFID EC C8 10 – Female extension cable, M12 8-pole straight connector. Lenght 10 m
MAGNUS RFID TC A – T type A connector
MAGNUS RFID TC B – T type B connector
MAGNUS RFID TC C – T type C connector
MAGNUS RFID TP – terminator plug
MAGNUS RFID MRFID SP S – Spacer
