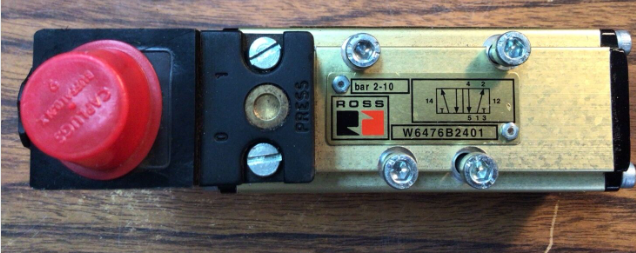

ROSS W6476B2401

Description

ROSS W6476B2401

• Poppet & Spool & Sleeve Options
• Pilot operation provides high shifting force with low power consumption
• Available port sizes include: 1/8”, 1/4”, 3/8”, 1/2”, and 3/4”
• Inlet pressure from vacuum to 150 psig (10 bar)
• Available with Buna-N and Flouroelastomer seals for a wide temperature range
• Single base and manifold base mounting

Valve Type	Directional Control
Valve Standard	ISO 5599-1
Application	Standard Temperature
Default Position	Normally Open
Return	Spring
Mounting	Base Mount
Connection	EN 175301-803 Form A
Manual Override	Non-locking
Size	1
Voltage	24 VDC
Duty Rating	Continuous Duty
Power Consumption	5.8 watts nominal, 6.5 watts maximum
Ambient Temperature	40 to 175 F (4 to 80 C)
Media Temperature	40 to 175 F (4 to 80 C)
Fluid Media	Filtered Air
Pilot Supply Minimum	Must be ≥ inlet pressure
Length	1.7 in (42 mm)
Valve Body Material	Bar Stock Aluminum
Seal Material	Buna-N
Series	W64
Actuation	Electrical
Construction	Poppet
Pilot Type	Internal/External
Operating Pressure	30 to 150 psig (2 to 10 bar)
Poppet/Spool Material	Aluminum & Stainless Steel
Function	5/2 Single Solenoid
Avg. Cv	1.0
Height	4.4 in (112 mm)
Weight	1.3 lb (0.6 kg)
Width	5.6 in (142 mm)
