Description

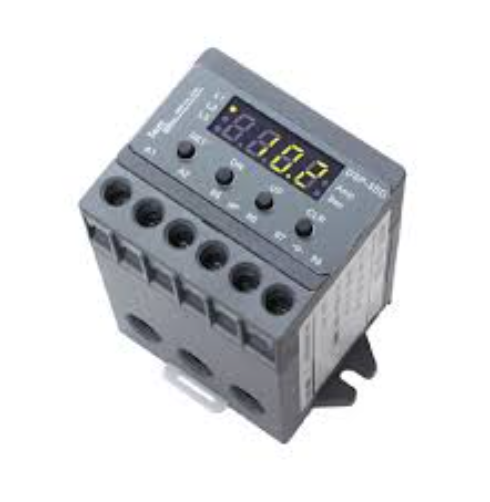

SAMWHA DSP DSP-3SD-60-Z7
DSP-3SD, 3SD-RG
Main Features
■Access restricted to authorized operator : Password
■Compact size, Multi-function
•Protection : – Over current/Under current/Phase loss/Revers e phase/Locked rotor/Current unbalance
: 3SD Type, 3SD-RG Type
– Ground fault : 3SD-RG Type
•Indication : Current/L1, L2, L3/Earth current
■To cover a wide and precise current range for the protection
•10 Type : – Definite T-I : 0.5A∼10A, 0.5A~6A with extern al CT
– Inverse T-I : 0.5A~6A/800% to “oc”
•60 Type : – Definite T-I : 5A∼60A
– Inverse T-I : 5A~15A/800% to “oc”
•Extended protection current range with external CT : 1A∼600A → 3SD Type
■Display for trip cause and operation information in character a nd/or number : 4 Digit Window
■Rotated indication for each phase current with 3 sec interval
•1P(single phase) : L1-L3 current •3P(three phase) : L1-L2-L3
■Ground fault protection based on residual zero phase current : 0.5A~10A
(not suitable for external CTapplication) : 0.5A~1
■Various trip reset options: Manual, Electrical or Automatic / flexible for automated and sequence machine operation.
■Stable operation under frequency variation from Inverter : 30Hz ∼ 400Hz
■Possible to check and/or to change(optional condition) preset value during the operation
■Self-diagnostic test by one touch for “SET” key
■History of latest 8 trip events
Order Form
No. Feature Description
1 Type •DSP-3SD •DSP-3SD-R
2 Rating Current
•10 : 0.5~10A • 60 : 5~60A
•Combined with external 3CT : Not available for 3SD-RG
•C1 : 100/5 •Cc : 150/5 •C2 : 200/5 •C3 : 300/5 •C4 : 400/5
3 Control Power •B : DC24V/Optional
•Z7 : 100∼240VAC, 50/60Hz(120∼370VDC) / Standard
4 P •NIL : Standard Type •P : Customized Ty
e.g.
DSP-3SD-10-Z7 Panel Mounting Type, 0.5A∼10A, 100∼240VAC, 50/60Hz
(120∼370VDC), able to use external CT
DSP-3SD-RG-60-Z7 Panel Mounting Type, 5A∼60A, 100∼240VAC,50/60Hz(120∼370VDC), GF protection :
0.5A~10A/ sensed in residual circuit, not available for external CT
DSP-2SD
Main Features
■Access restricted to authorized operator: Password
■3Phase Load protection through 2CT
■MCU based digital control : optimized protection
•Protection : Over current/Phase loss/Locked rotor
•Indication : 3 Phase Current/L1, L2, L3
■To cover a wide and precise current range for the protection
•10 Type : Definite T-I : 0.5A∼10A , 0.5A~6A with external CT
•60 Type : Definite T-I : 5A∼60
•Extended protection current range with external CT : 1A∼600A
■Display for trip cause and operation information in character and/or number : 4 Digit Window
■Rotated indication for each phase current with 3 sec interval
•1P(single phase) : L1-L3 current •3P(three phase) : L1-L2-L3
■Indication of necessasary information every 3 sec
■Convenient selection for 1P/3P in preset mode
■Various trip reset options : Manual, Electrical or Automatic /flexible for automated and sequence machine operation.
■Stable operation under frequency variation from Inverter : 30Hz ∼ 400Hz
■Possible to check and/or to change(optional condition) preset value during the operation
■Self-diagnostic test by one touch for “SET” key
■History of latest 8 trip events
Order Form
No. Feature Description
1 Type •DSP-2SD
2 Rating Current •10 : 0.5~10A • 60 : 5~60A •Combined with external 3CT
•C12 : 100/5 •Cc2 : 150/5 •C22 : 200/5 •C32 : 300/5
3 Control Power •B : DC24V/Optional
•Z7 : 100∼240VAC, 50/60Hz(120∼370VDC) / Standard
4 P •NIL : Standard Type •P : Customized Type
e.g.
DSP-2SD-10-Z7 Panel Mounting Type, 0.5A∼10A, 100∼240VAC, 50/60Hz
(120∼370VDC), able to use external CT
DSP-2SD-60-Z7 Panel Mounting Type, 5A∼60A, 100∼240VAC,50/60Hz(120∼370VDC),
able to use external CT
