Description

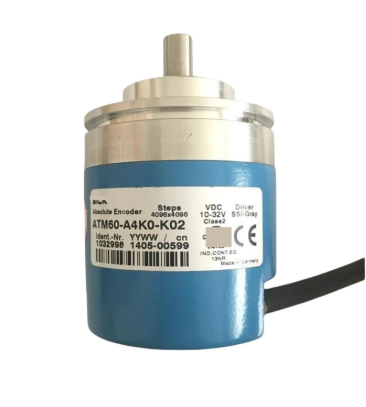

SICK ATM60-A4K0-K02
Product Information
| Alternative Part Number: | 1032998 |
| Manufacturer: | Sick |
| Pricing Unit: | Each |
| Weight: | 0.672 kg (each) |
- Product segment Encoders
- Product family group Absolute encoders
- Product family ATM60 SSI
| Encoder version | Absolute Multiturn |
| Communication interface | SSI |
| Mechanical version /shaft diameter | Solid shaft, face mount flange, 10 mm |
| Max. resolution (singleturn, multiturn) | 8,192 (13 bit), 8,192 (13 bit) |
| Connection type | Cable 12-wire radial 1.5 m |
| Programmable/configurable | Over programming tool |
Specifications
| Manufacturer Part Number | 1032998 |
|---|---|
| Manufacturer | Sick |
| Product Series | ATM60 |
| Family Series | Sick Encoders, ATM60 Series |
| Description | 1032998, Absolute Encoder |
| Input Power | 10-32 VDC |
| Protocol | SSI |
| Shaft/Bore Size | 10 mm |
| Shaft Seal | Yes |
| Mounting | Face Mount |
| Connector | 1.5 m Radial Cable |
| Operating Temperature | -20-85 °C |
| Protection Rating | IP43, IP65, IP67 |
| Approvals | CE, cULus, EAC |
| Net Weight | 1.1023 lbs |
| Gross Weight | 0 lbs |
