Description

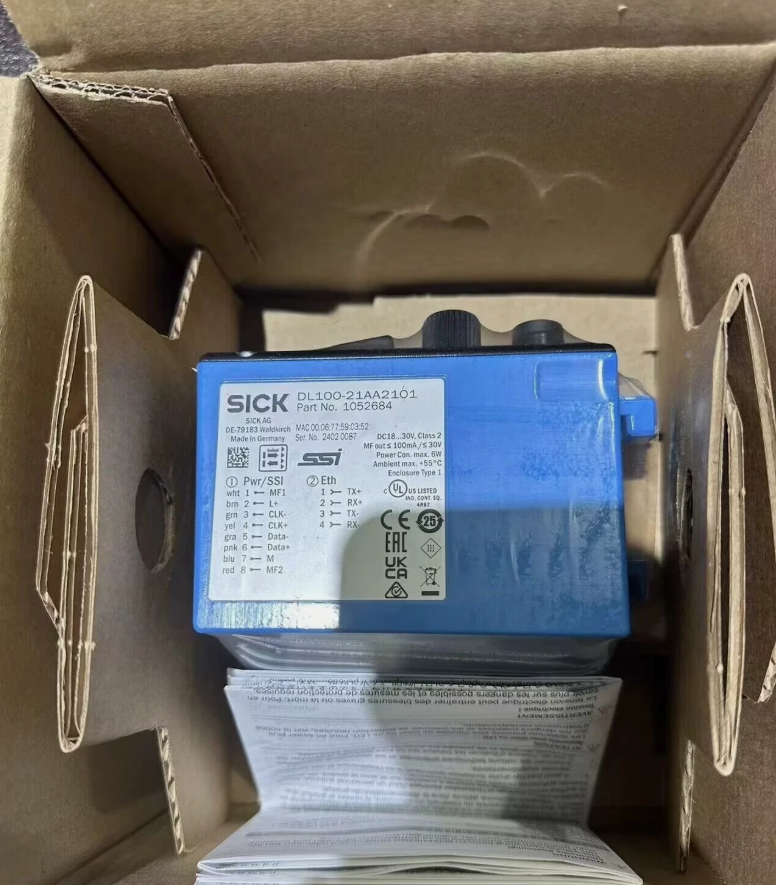

SICK DL100-21AA2101
LONG RANGE DISTANCE SENSORS, TARGET: REFLECTOR , DL10021AA2103 / 1052688
SICK DL100-21AA2101 DL100-21AA2112
DL100-21AA2101
DL100-21AA2102
DL100-21AA2103
Product Information
| Alternative Part Number: | 1052688 |
| Manufacturer: | Sick |
| Pricing Unit: | Each |
| Weight: | 1.015 kg (each) |
Product Details
| ETIM Group: | Sensors |
| ETIM Class: | Optical distance sensor |
| Ambient temperature: | -20 – 55°C |
| AWG-number: | – |
| Degree of protection (IP): | IP65 |
| Diameter sensor: | – |
| Geometrical resolution: | – |
| Height of sensor: | 82.5mm |
| Laser protection class: | Class 2 |
| Length of sensor: | 100.2mm |
| Light dot: | – |
| Material housing: | Other |
| Material of optical surface: | Plastic |
| Max. output current: | – |
| Measuring principle for optical distance measurement: | Light delay time |
| Measuring range length: | 100000 – 100000mm |
| Operation agent-safety class: | Safety class 3 |
| Pre failure notice: | – |
| Relative accuracy of measurement: | – |
| Relative linearity deflection: | – |
| Relative repeat accuracy: | – |
| Signalling interval: | – |
| Standard for interfaces: | Serial |
| Supply voltage: | 18 – 30V |
| Switching frequency: | – |
| Type of electric connection: | Other |
| Type of light: | Polarized red light |
| Voltage type: | DC |
| Width sensor: | 69.4mm |
