SICK SFS60-HRAT0K02
Product Description

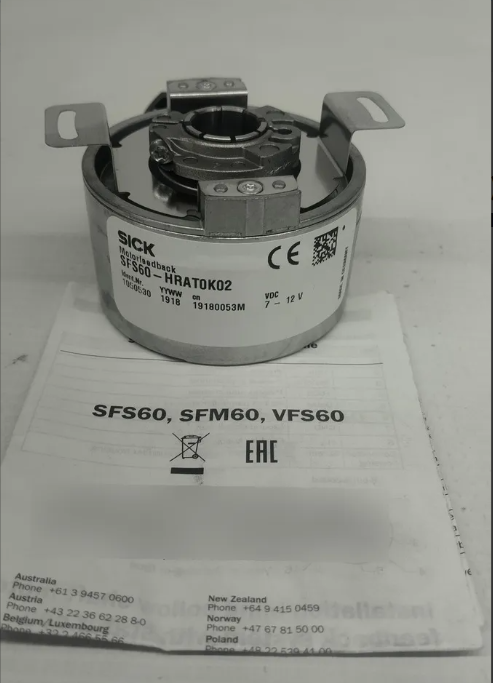

SICK SFS60-HRAT0K02 High-Precision Motor Feedback System
The SICK SFS60-HRAT0K02 Motor Feedback System is engineered for high-accuracy position and speed detection in advanced servo and motion control applications. It integrates a HIPERFACE® interface for reliable, real-time communication between motor and controller, ensuring stable synchronization and precise movements. With 1,024 sine/cosine periods per revolution and operational speeds up to 9,000 rpm, it offers excellent resolution and dynamic performance. Its robust aluminum die-cast body and IP65 protection rating make it suitable for challenging industrial settings, while the compact design supports easy integration into modern automation systems.
The SICK SFS60-HRAT0K02 enhances control accuracy through a combination of absolute and incremental signal feedback, enabling consistent performance even in high-speed or high-torque operations. The HIPERFACE® communication protocol provides fast data exchange and supports advanced monitoring for early fault detection. Constructed with a stainless-steel through hollow shaft and durable components, it performs reliably across wide temperature ranges and under strong vibration or shock. Delivering system accuracy within ±52 arc-seconds, this model is ideal for robotics, precision assembly lines, and semiconductor manufacturing—offering smoother operation, reduced maintenance needs, and greater machine uptime.
Key Features & Specifications – SICK SFS60-HRAT0K02 (Article No. 1050530)
| Feature | Details | Benefit |
|---|---|---|
| Interface Type | HIPERFACE | Ensures fast, reliable data transfer between encoder and servo controller. |
| Measurement Resolution | 1,024 sine/cosine periods per revolution | Provides smooth, high-resolution position feedback for precise motion control. |
| System Accuracy | ±52 arc-seconds | Guarantees outstanding repeatability and stable performance in high-speed operations. |
| Shaft Type | Through hollow shaft, 14 mm stainless steel | Allows direct motor integration, improving mechanical stability and lifespan. |
| Operating Speed | Up to 9,000 rpm | Supports rapid movement applications with minimal signal distortion. |
| Supply Voltage | 7–12 V DC (recommended 8 V DC) | Compatible with common servo drive power configurations. |
| Output Frequency | ≤ 200 kHz | Maintains signal integrity during high-speed rotation. |
| Torque | 0.6 Ncm (operating), 0.8 Ncm (start-up) | Reduces load on the motor, ensuring efficient operation. |
| Operating Temperature Range | –40 °C to +115 °C | Performs reliably in extreme industrial environments. |
| Protection Class | IP65 with mating connector | Provides superior protection against dust and moisture ingress. |
| Housing Material | Aluminum die-cast | Durable, lightweight design for improved heat dissipation and strength. |
| Ball Bearing Life | 3.6 × 10⁹ revolutions | Long service life reduces maintenance frequency. |
| EMC Compliance | EN 61000-6-2, EN 61000-6-3 | Ensures reliable operation in electrically noisy environments. |
| Conformity Certificates | EU, UK, ACMA, China-RoHS, Morocco | Meets global compliance and safety requirements. |
Related Products & Accessories – SICK SFS60-HRAT0K02 (Article No. 1050530)
| Category | Model Name | Part Number | Purpose / Benefit |
|---|---|---|---|
| Programming Device | PGT-11-S LAN | 1057324 | Enables configuration, parameterization, and diagnostics of SFS/SFM60 encoders. |
| Stator Coupling | BEF-DS07XFX | 2059368 | Provides secure mechanical fit and compensates for minor shaft misalignments. |
| Stator Coupling | BEF-DS05XFX | 2057423 | Minimizes vibration and maintains stable encoder alignment. |
| Stator Coupling | BEF-DS01DFS/VFS | 2047428 | Offers flexible installation and alignment correction across motor types. |
| Stator Coupling | BEF-DS02DFS/VFS | 2047430 | Broad compatibility with diverse servo and drive housing configurations. |
| Stator Coupling | BEF-DS03DFS/VFS | 2047431 | Ideal for heavy-duty motors needing robust connection stability. |
| Connector (Female) | DOS-2312-G | 6027538 | Ensures shielded and secure connection for encoder signals. |
| Connector (Male) | STE-2312-G | 6027537 | Maintains strong data integrity and high-speed signal transmission. |
| Connection Cable (1.5 m) | DOL-2308-G1M5JB2 | 2031069 | Perfect for compact installations requiring short flexible connections. |
| Connection Cable (3 m) | DOL-2308-G03MJB2 | 2031070 | Provides reliable data transmission for medium-distance connections. |
| Connection Cable (5 m) | DOL-2308-G05MJB2 | 2031071 | Ideal for equipment setups needing extended reach and flexibility. |
| Connection Cable (10 m) | DOL-2308-G10MJB2 | 2031072 | Supports long-distance installations while preserving signal quality. |
| Connection Cable (15 m) | DOL-2308-G15MJB2 | 2031073 | Designed for extended machine layouts with stable data transfer. |
| Angled Connector | DOS-2312-W01 | 2072580 | Saves space in compact cabinets or tight mechanical setups. |
| Connector (9-pin) | DOS-2309-G | 6028533 | Compatible with specific controllers requiring 9-pin signal interfaces. |
