Description
SMC SMC CY3RG20-350
SMC CY3R/CY3RG20-50/100/150/200/250/300/350/400/450/500
CY3RG20-50,CY3RG20-100,CY3RG20-150,CY3RG20-200, CY3RG20-250,CY3RG20-300,CY3RG20-350,CY3RG20-400, CY3RG20-450,

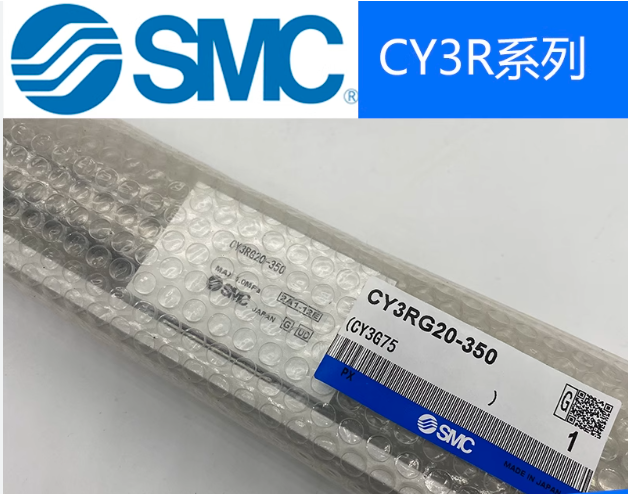

Rodless Cylinder (CY3RG20-350)
Magnetically Coupled, Direct Mount Type, CY3R Series
Part Number: CY3RG20-350
An air slide table made by SMC
Features
· A further upgrade from the CY1 series
· The installation dimensions are the same as the CY1 series, yet it features improved bearing performance and reduced sliding resistance.
· NPT screws and G screws are standardized
| Type | Rodless Cylinder | Cylinder Inner Diameter(Ø) | 20 |
|---|---|---|---|
| Stroke(mm) | 350 | Max. Load Mass (Horizontal Mounting)(kg) | 1~4.9 |
| Table Size Length L(mm) | 62 | Table Material | [Aluminum] Aluminum Alloy |
| Rodless Cylinder Joint Type | Magnetic | Guide | [Guideless] Direct mounted |
| Table Size Width W(mm) | 39 | Table Size Height H(mm) | 39 |
| Table Surface Treatment | [Anodize] Hard Anodize | Environment | General Purpose |
| Maximum Load(kg) | 1.1 | Piping Format | Centralized piping type |
| Port Screw Type | Rc | Cushion | Rubber cushion |
| Switch Rail | Yes | Specification | Magnet built-in |
| Auto Switches | None | Lead Wire Length(m) | – |
| Lead Wire Connector | – | The number of the switches | – |
| Custom-made Specifications | 0.16 to 0.7 | Custom-made | None |
