TAIYO FCD-FR-REM (834)

• Manufacturer: Taiyo Valve Mfg. Co., Ltd.
• Sizes: Available for pipe diameters ranging from 15A to 125A (1/2″ to 5″).
• Flow Type: Typically installed horizontally (left-to-right), but can be configured for other directions, including vertical (Type-U for bottom-to-top, Type-D for top-to-bottom).
• Maintenance: The FR type includes a wiper ring mechanism for cleaning the sight glass.
• Switching: The “REM” indicates it has a switch for electric signal output.
• Design Pressure: Rated for 1.0 MPa.
• Design Temperature: 80°C. [1, 2]
• Installation and Operation Guidelines
  • • Installation: Install with the sight glass vertical and the flapper at the zero mark.
    • Straight Pipe Requirement: Ensure a straight pipe section is maintained before and after the gauge (approximately 3 times the diameter) to guarantee accuracy.
    • Cleaning: If the sight glass becomes dirty, use the brush handle to rotate and clean the internal surfaces without interrupting flow.
    • Switch Adjustment: To adjust the signal flow rate, cut the power, remove the cover, and move the switch case. [1, 2]

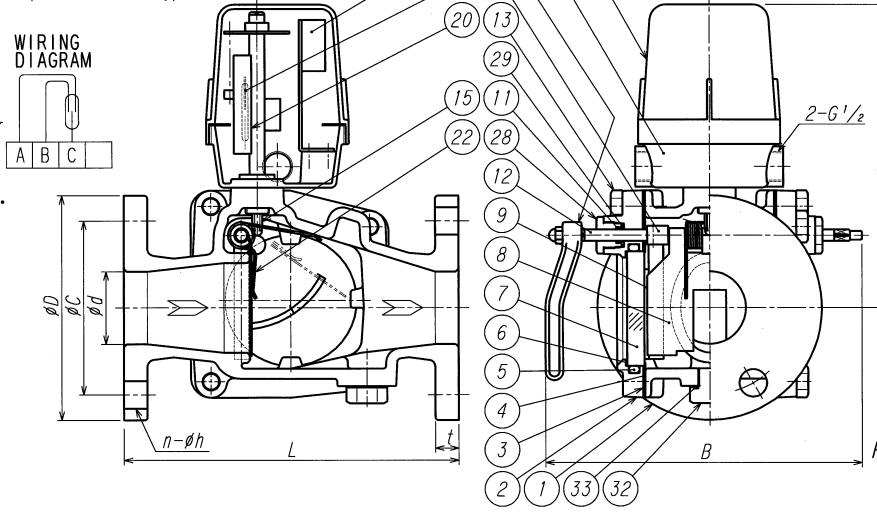

  For detailed technical drawings and installation, refer to the FCD-FR-REM manual.

  Model:

FLOW GAUGE
TYPE: FCD-FR-REM(834)
SIZE: 20A (3/4B)
EQUIVALENT TO MFG NO. 241334

FCD-FR-REM (834) 15A  FCD-FR-REM (834) 20A FCD-FR-REM (834) 25A

FCD-FR-REM (834) 32A FCD-FR-REM (834) 40A FCD-FR-REM (834) 50A

FCD-FR-REM (834) 65A FCD-FR-REM (834) 80A FCD-FR-REM (834) 100A

FCD-FR-REM (834) 125A
