Description

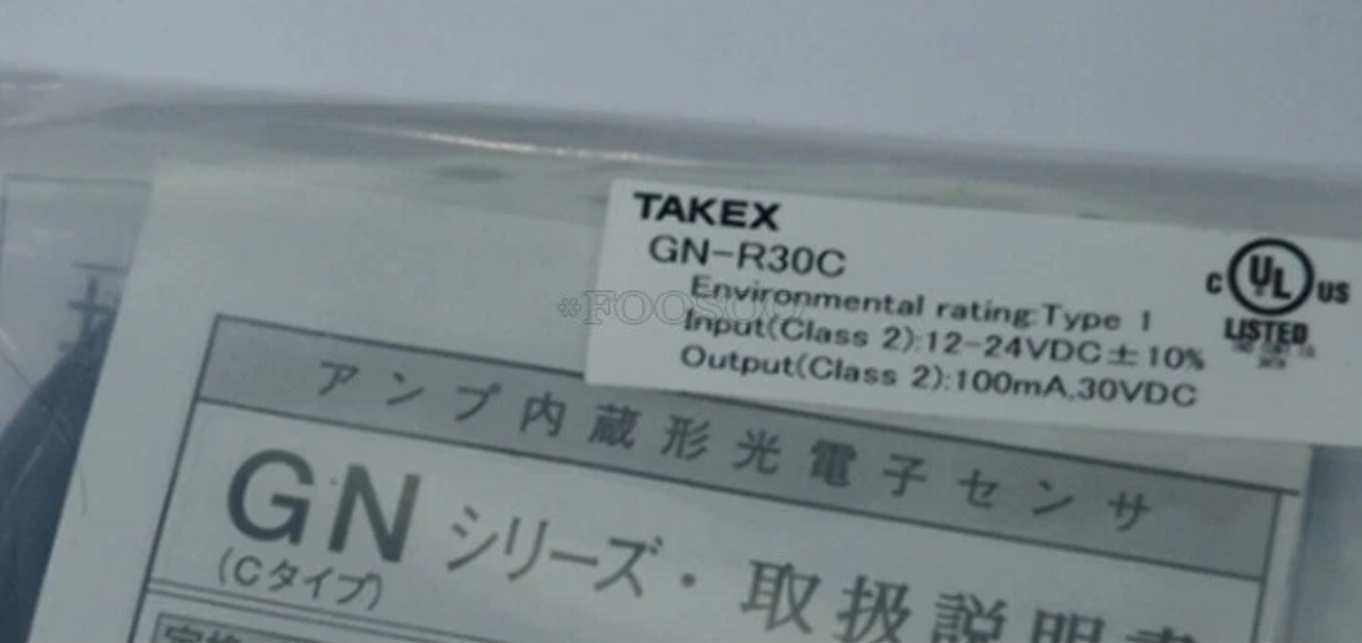

TAKEX GN-R30C
GN Series
- New type of amplifier built-in photo sensor
- Slim and compact side-on models
- Lightweight and compact
Thin, space-saving sensor allows flexible mounting - Flat lens less affected by dust and dirt
Superb stability at high power (detecting distance of 10 m) - High-intensity indicators with excellent visibility
Easy to check if the sensor is operating from a distance
- Lightweight and compact
| Model | Detection method | Detecting distance | Output mode | Connection | Power supply | Protective structure | |
|---|---|---|---|---|---|---|---|
| GN-M2CR | Polarized retroreflective | 0.03 – 1.3m | NPN | Attached cable | 12 – 24V DC | IP67 | |
| GN-M2CR-J | Polarized retroreflective | 0.03 – 1.3m | NPN | M8 Connector | 12 – 24V DC | IP67 | |
| GN-M2CRPN | Polarized retroreflective | 0.03 – 1.3m | PNP | Attached cable | 12 – 24V DC | IP67 | |
| GN-M2CRPN-J | Polarized retroreflective | 0.03 – 1.3m | PNP | M8 Connector | 12 – 24V DC | IP67 | |
| GN-R7C | Diffuse reflective | 70mm | NPN | Attached cable | 12 – 24V DC | IP67 | |
| GN-R7C-J | Diffuse reflective | 70mm | NPN | M8 Connector | 12 – 24V DC | IP67 | |
| GN-R7CPN | Diffuse reflective | 70mm | PNP | Attached cable | 12 – 24V DC | IP67 | |
| GN-R7CPN-J | Diffuse reflective | 70mm | PNP | M8 Connector | 12 – 24V DC | IP67 | |
| GN-R30C | Diffuse reflective | 300mm | NPN | Attached cable | 12 – 24V DC | IP67 | |
| GN-R30C-J | Diffuse reflective | 300mm | NPN | M8 Connector | 12 – 24V DC | IP67 | |
| GN-R30CPN | Diffuse reflective | 300mm | PNP | Attached cable | 12 – 24V DC | IP67 | |
| GN-R30CPN-J | Diffuse reflective | 300mm | PNP | M8 Connector | 12 – 24V DC | IP67 | |
| GN-R40CR | Diffuse reflective | 400mm | NPN | Attached cable | 12 – 24V DC | IP67 | |
| GN-R40CR-J | Diffuse reflective | 400mm | NPN | M8 Connector | 12 – 24V DC | IP67 | |
| GN-R40CRPN | Diffuse reflective | 400mm | PNP | Attached cable | 12 – 24V DC | IP67 | |
| GN-R40CRPN-J | Diffuse reflective | 400mm | PNP | M8 Connector | 12 – 24V DC | IP67 | |
| GN-T7C | Through beam | 7m | NPN | Attached cable | 12 – 24V DC | IP67 | |
| GN-T7C-J | Through beam | 7m | NPN | M8 Connector | 12 – 24V DC | IP67 | |
| GN-T7CPN | Through beam | 7m | PNP | Attached cable | 12 – 24V DC | IP67 | |
| GN-T7CPN-J | Through beam | 7m | PNP | Attached cable | 12 – 24V DC | IP67 | |
| GN-T10CR | Through beam | 10m | NPN | Attached cable | 12 – 24V DC | IP67 | |
| GN-T10CR-J | Through beam | 10m | NPN | M8 Connector | 12 – 24V DC | IP67 | |
| GN-T10CRPN | Through beam | 10m | PNP | Attached cable | 12 – 24V DC | IP67 | |
| GN-T10CRPN-J | Through beam | 10m | PNP | M8 Connector | 12 – 24V DC | IP67 | |
| GN-Z3C | Convergent reflective | 1 – 40mm | NPN | Attached cable | 12 – 24V DC | IP67 | |
| GN-Z3C-J | Convergent reflective | 1 – 40mm | NPN | M8 Connector | 12 – 24V DC | IP67 | |
| GN-Z3CPN | Convergent reflective | 1 – 40mm | PNP | Attached cable | 12 – 24V DC | IP67 | |
| GN-Z3CPN-J | Convergent reflective | 1 – 40mm | PNP | M8 Connector | 12 – 24V DC | IP67 | |
| GN-Z3CR | Convergent reflective | 3 – 30mm | NPN | Attached cable | 12 – 24V DC | IP67 | |
| GN-Z3CR-J | Convergent reflective | 3 – 30mm | NPN | M8 Connector | 12 – 24V DC | IP67 | |
| GN-Z3CRPN | Convergent reflective | 3 – 30mm | PNP | Attached cable | 12 – 24V DC | IP67 | |
| GN-Z3CRPN-J | Convergent reflective | 3 – 30mm | PNP | M8 Connector | 12 – 24V DC | IP67 |
