Description

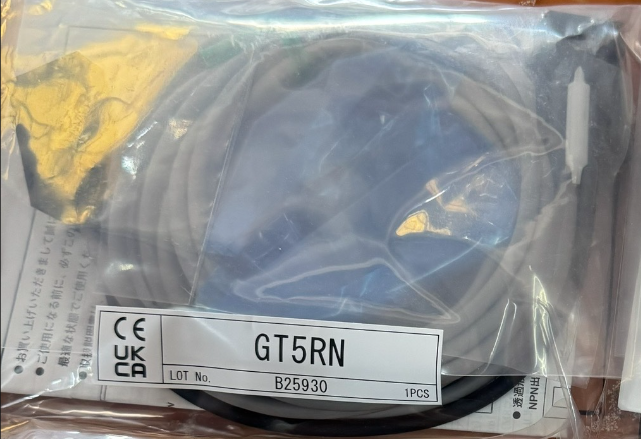

TAKEX GT5RN
Rating/Performance/Specification
| Detection method | Through beam |
|---|---|
| Detecting distance | 7 ｍ |
| Detection object | dia.20mm (or more) Opaque |
| Power supply | 12 – 24V DC ±10% / Ripple 10% or less (* 5VDC model) |
| Current consumption | Transmitter: 20mA or less Receiver: 20mA or less |
| Output mode | Control output : NPN open collector output Rating: sink current 100mA (30 VDC) or less / Residual voltage: 1 V or less Stability output : NPN open collector output Rating: sink current 50mA (30 VDC) or less / Residual voltage: 1 V or less |
| Operation mode | Light-ON/Dark-ON selectable (with switch) |
| Response time | 0.5ms or less |
| Operating angle | 10° (at receiver) |
| Light source (light wavelength) | Red LED (700nm) |
| Indicator | Transmitter: power indicator (red LED) Receiver: operation indicator (red LED) stability indicator (green LED) |
| Volume(VR) | SENS: sensitivity adjustment (on receiver for through-beam type) |
| Switch(SW) | Light-ON/Dark-ON selector switch provided |
| Short circuit protection | Provided (for control output only) |
| Material | Case : Polyarylate Lens : Acrylic |
| Connection | Attached cable (outer diameter 4.2) Transmitter of through-beam type: 0.3 mm2 2 core 2 m length (gray) Receiver of through-beam type, reflective type : 0.2 mm2 4 core 2 m (black) |
| Mass | Approx. 80 g (transmitter/receiver) |
| Accessories | Mounting bracket, screwdriver for adjustment and operation manual |
| Notes | *A model using power supply of 5VDC is also available among head-on types. Please contact TAKEX for details. * All models are provided with a mounting bracket. Polarization reflector types are provided with a bracket for reflector and adhesive sheet for mounting the reflector. |
- The detecting distance of diffuse reflective type varies, depending on transmittance of the detection object. Please be sure to check the detection beforehand.
- The detecting distance and detection object of the reflective type vary, depending on a reflector combined with the sensor.
- The detecting distance is the range which you can set for the reflector. The sensor can detect an object even in extremely short range.
2. Một số dòng tương đương :
GR100R
GR100RPN
GR12G
GR12GN
GR12GS
GR12GSN
GR12R
GR12RN
GR12RS
GR12RSN
GR12UVS
GR12UVSPN
GR2M-DR
GR2M-DR14
GR40R
GR40RN
GR60R
GR60RN
GT5RN-J. GMR2RSN. GMR2RSN-J. GMR2RN. GMR2RN-J. GSR05RSN. GSR05RSN-J. GSR05RN
GT5RSN
GMR2RSN
GSR05RSN
GSZ5RS
GT5RN
GMR2RN
GSR05RN
GSZ5R
| MODEL | LIGHT SOURCE (WAVELENGTH) | DETECTION DISTANCE | OUTPUT MODE | RESPONSE TIME | |
|---|---|---|---|---|---|
| GR12BSN | Blue LED (470nm) |
12mm ± 2mm | NPN | 0.5 ms or less | |
| GR12BSN-PN | Blue LED (470nm) |
12mm ± 2mm | PNP | 0.5 ms or less | |
| GR12GN | Green LED (525nm) | 12mm ± 2mm | NPN | 0.5 ms or less | |
| GR12GN-PN | Green LED (525nm) | 12mm ± 2mm | PNP | 0.5 ms or less | |
| GR12GSN | Green LED (525nm) | 12mm ± 2mm | NPN | 0.5 ms or less | |
| GR12GSN-PN | Green LED (525nm) | 12mm ± 2mm | PNP | 0.5 ms or less | |
| GR12RN | Red LED (660nm) | 12mm ± 2mm | NPN | 0.5 ms or less | |
| GR12RN-PN | Red LED (660nm) | 12mm ± 2mm | PNP | 0.5 ms or less | |
| GR12RSN | Red LED (660nm) | 12mm ± 2mm | NPN | 0.5 ms or less | |
| GR12RSN-PN | Red LED (660nm) | 12mm ± 2mm | PNP | 0.5 ms or less | |
| GR12UVS | Ultraviolet LED (375nm) | 12mm ± 2mm | NPN | 1ms | |
| GR12UVSPN | Ultraviolet LED (375nm) | 12mm ± 2mm | PNP | 1ms | |
| GR12WSN | White LED | 12mm ± 2mm | NPN | 0.5 ms or less | |
| GR40RN | Red LED (660nm) | 20-70mm | NPN | 0.5 ms or less | |
| GR40RN-PN | Red LED (660nm) | 20-70mm | PNP | 0.5 ms or less | |
| GR60RN | Red LED (660nm) | 30-90mm | NPN | 0.5 ms or less | |
| GR60RN-PN | Red LED (660nm) | 30-90mm | PNP | 0.5 ms or less |
