Description

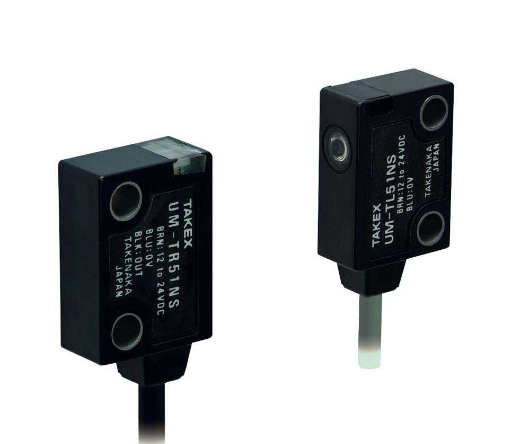

TAKEX UM-T51NS
UM Series
Miniature / Side-on Embedded Amplifier Photo Sensors
UM-T51NS UM-T51NSV UM-T51DNS UM-T51DNSV
- Ultra-mini and attached with M3 screws
- Slim slide-on style sensor
- Basic function model for applications ranging from flush-mounting to small conveyor lines
- In-line sensitivity adjustment
Specification
| Detection method | Through beam type |
|---|---|
| Detecting distance | 500mm |
| Detection object | dia.3mm (or more) Opaque |
| Power supply | 12 to 24V DC ±10％ / Ripple 10％ or less |
| Current consumption | Transmitter : 14mA or less Receiver : 14mA or less |
| Output mode | NPN open collector Rating: sink current 100 mA (30 VDC) or less |
| Operation mode | Light ON |
| Response time | 0.5ms or less |
| Light source | Red LED |
| Indicator | Operation indicator (red LED) Stability indicator (green LED) |
| Material | Case : PBT Lens : PAR |
| Connection | Attached cable 2m Transmitter：0.15mm2×2 core (Gray), dia φ2.5mm Receiver：0.15mm2×3core (Black), dia φ2.7mm |
| Weight | Transmitter : Approx. 30g Receiver : Approx. 35g |
| Accessories | Instruction manual, mounting screw |
Environmental Specification
| Ambient light | 3,000 lx or less |
|---|---|
| Ambient temperature | -25 to +55 ℃ (no freezing) |
| Ambient humidity | 35 to 85%RH (no condensation) |
| Protective structure | IP64 |
| Vibration | 10 to 55 Hz / 1.5 mm double amplitude / 2 hours each in 3 direction |
