Description

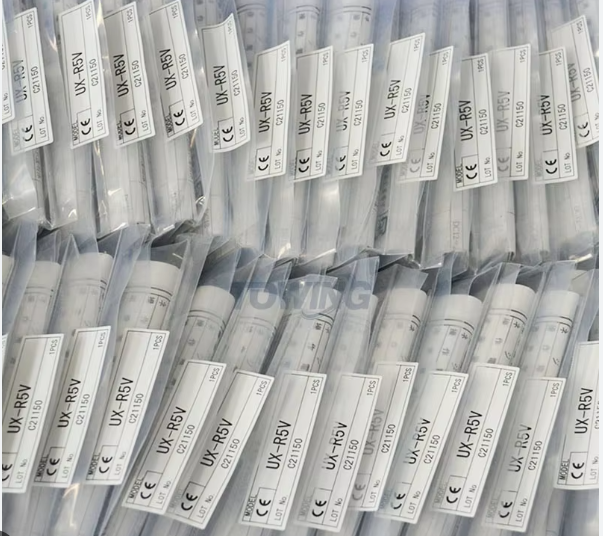

TAKEX UX-R5V
Cảm biến quang điện UX–R5V Takex … – Nguồn cấp: 12-24 VDC ±10% Ripple 10% max. – Dòng tiêu thụ: 20 mA max. … – Thời gian đáp ứng: 0.5 ms max.
Features Include:
- Installs in the same space as typical fiber sensors
- Side view thru-beam range to 500mm
- Head on thru-beam range to 1000mm
- Stainless steel construction for high durability
- Polysulfone lens resists harsh chemical environments
- Self-contained design – no external electronic requirement
- Amplifier embedded in M5 or M6 threaded screw
- Simple installation reduces man-hours.
- Replacing fiber sensors contributes to lower power consumption.
- Can be used in the battery industry thanks to its stainless steel housing.
- Our line includes both straight and side view through- beam types.
- Diffuse reflective type is equipped with sensitivity volume. (Model: UX-R5V, UX-R5VPN)
GT3RSN
IR3AN
GSM2RSN
DL-S100TC
UM-T50DS
UM-TL15T
FS-5000E
IR7AN
GT5RN
UM-Z3SV
GR12GN
UM-T51DNSV
AS-U25D
GS5SN
F70AGK
LDB540L(S)
F5RN
AS-U25VD
US-7962AN
UX-R5V
US-T50 (US-TD50 + US-TE50)
FX716BC ( Using for F70AGK and replacing for FX7731S)
PXB-50HF
LDV167L1
UM-T50DNSV ( Including UM-TR50DNSV + UM-TL50NS + in-line sensitivity adjustment volume )
GR12WSN
| Model | Power supply | Detection method | Detecting distance min (mm) | Detecting distance (mm) | Control output | Operation mode | Light source | Protective structure | Connection | |
|---|---|---|---|---|---|---|---|---|---|---|
| UX-T100D | Through beam | 1000.00 | NPN | Dark on | Red LED | IP67 | Attached cable | |||
| UX-T100DPN | Through beam | 1000.00 | PNP | Dark on | Red LED | IP67 | Attached cable | |||
| UX-T50DS | Through beam | 500.00 | NPN | Dark on | Red LED | IP67 | Attached cable | |||
| UX-T50DSPN | Through beam | 500.00 | PNP | Dark on | Red LED | IP67 | Attached cable | |||
| UX-R2 | Diffuse reflective | 3.00 | 20.00 | NPN | Light on | Infrared LED | IP67 | Attached cable | ||
| UX-R2PN | Diffuse reflective | 3.00 | 20.00 | PNP | Light on | Infrared LED | IP67 | Attached cable | ||
| UX-R3 | Diffuse reflective | 3.00 | 30.00 | NPN | Light on | Infrared LED | IP67 | Attached cable | ||
| UX-R3PN | Diffuse reflective | 3.00 | 30.00 | PNP | Light on | Infrared LED | IP67 | Attached cable | ||
| UX-R5 | Diffuse reflective | 3.00 | 50.00 | NPN | Light on | Infrared LED | IP67 | Attached cable | ||
| UX-R5PN | Diffuse reflective | 3.00 | 50.00 | PNP | Light on | Infrared LED | IP67 | Attached cable | ||
| UX-R5V | Diffuse reflective | 3.00 | 50.00 | NPN | Light on | Infrared LED | IP67 | Attached cable | ||
| UX-R5VPN | Diffuse reflective | 3.00 | 50.00 | PNP | Light on | Infrared LED | IP67 | Attached cable
|
