Description

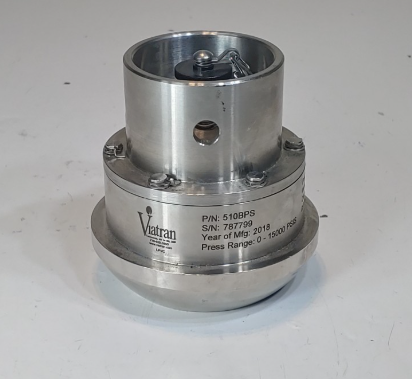

VIATRAN 510BPS
The Viatran Model 510 is a pressure transmitter designed specifically for oil field service applications. This transmitter provides a 4-20 mA signal output proportional to pressure. The Hammer Union pressure connection and low-profile design make it ideal for use at the well site. The field calibration feature makes the Viatran 510 Series a leader in oil field pressure instrumentation.
Our exclusive semi flush design provides a lower cavity volume to prevent clogging. This eliminates the need for tedious cleaning, especially in cementing applications
Features
- 1502 Hammer Union Pressure Fitting
- RoHS Compliant
- RoHS Compliant
Một số part no cảm biến áp suất Viatran :
| Part | Description |
| 5705BFSNYTF | 0 – 5000 PSIS, 4 – 20 mA output, 1/2″ NPT male conduit connection with 72″ leads, 1/4″ NPT female pressure connection, FM Explosion Proof Approval, FM Intrinsically Safe Approval. |
| 5705BPSTF | 0 – 15000 PSIS, 4 – 20 mA output, 1/2″ NPT male conduit connection with 72″ leads, 1/4″ NPT female pressure connection, FM Intrinsically Safe Approval. |
| 5705ARSNHNYTF | 0 – 300 PSIS, 4 – 20 mA output, 1/2″ NPT male conduit connection with 72″ leads, 1/4″ NPT female pressure connection, Optional customer information, FM Explosion Proof Approval, FM Intrinsically Safe Approval. |
| 5705BFSBHNKTF | 0 – 5000 PSIS, 4 – 20 mA output, Amphenol 6-pin electrical connector, 1/4″ NPT female pressure connection, ATEX Intrinsically Safe Approval, FM Intrinsically Safe Approval. |
| 5705BFSNKNYNZ | 0 – 5000 PSIS, 4 – 20 mA output, 1/2″ NPT male conduit connection with 72″ leads, 1/4″ NPT female pressure connection, ATEX Intrinsically Safe Approval, FM Explosion Proof Approval, FM Non-Incendive Approval. |
| 5705BPSNKNYNZTF | 0 – 15000 PSIS, 4 – 20 mA output, 1/2″ NPT male conduit connection with 72″ leads, 1/4″ NPT female pressure connection, ATEX Intrinsically Safe Approval, FM Explosion Proof Approval, FM Non-Incendive Approval, FM Intrinsically Safe Approval. |
| 5705BFSNYNZTF | 0 – 5000 PSIS, 4 – 20 mA output, 1/2″ NPT male conduit connection with 72″ leads, 1/4″ NPT female pressure connection, FM Explosion Proof Approval, FM Non-Incendive Approval, FM Intrinsically Safe Approval. |
| 5705BCSNK | 0 – 3000 PSIS, 4 – 20 mA output, 1/2″ NPT male conduit connection with 72″ leads, 1/4″ NPT female pressure connection, ATEX Intrinsically Safe Approval. |
| 5705ARSNX | 0 – 300 PSIS, 4 – 20 mA output, 1/2″ NPT male conduit connection with 72″ leads, 1/4″ NPT female pressure connection, CSA Intrinsically Safe Approval. |
Phụ kiện của cảm biến áp suất Viatran 5705BPSX1052:
| 004102.013 | Polypropylene Mounting Bracket – Fits 1 1/2″ Diameter Models |
| 003633.002 | Mounting Bracket- For 2″ Pipe, Fits 1 1/2″ diameter models |
| 004016.002 | Mounting Bracket-Fits 1 1/2″ diameter models |
| DL-AC-S4NE | Dual line 6 digit analog input process meter, mating cable assembly option available, not required if transmitter is equipped with leads or cable connection. |
345AFGX1126D Viatran
222AMAYC Viatran
222AUAYC Viatran
122AFAX2275 Viatran
510BPS Viatran
245AKGX748E Viatran
510BGSX651 Viatran
Đại lý VIATRAN vietnam, VIATRAN viet nam, VIATRAN vietnam distributor, Phân phối VIATRAN tại việt nam
Đại lý VIATRAN vietnam, VIATRAN viet nam, VIATRAN vietnam distributor, Phân phối VIATRAN tại việt nam
Đại lý VIATRAN vietnam, VIATRAN viet nam, VIATRAN vietnam distributor, Phân phối VIATRAN tại việt nam
