Description

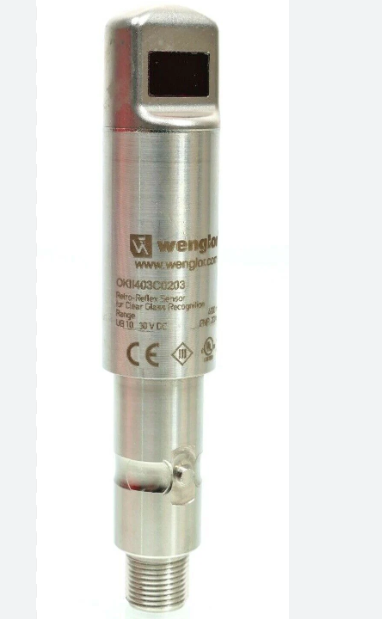

WENGLOR OKII403C0203
Features at a Glance
- Hygienic design makes it easy to clean
- Made with food safe materials that are FDA approved
- Waterproof (IP68/IP69K)
- Touch teach-in, external teach-in
The photoelectronic sensors in the hygienic housing are distinguished by a captive optic cover and food-safe, FDA-compliant materials. The hygienic design with no corners or edges enables optimal flow of cleaning agents. The laser-welded 316L stainless steel housing (1.4404/V4A) is resistant to high-pressure cleaning (degree of protection IP69K) and suitable for cleaning-intensive applications. When combined with the available accessories, gap-free installation is guaranteed for the highest hygiene requirements. Setting is performed by means of touch teach-in through the hermetically sealed housing.
Optical Data |
|
|---|---|
| Range | 4,000 mm |
| Reference Reflector/Reflector Foil | RQ100BA |
| Clear Glass Recognition | yes |
| Switching Hysteresis | < 5 % |
| Light Source | Red Light |
| Polarization Filter | yes |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
| Opening Angle | 3 ° |
| Single-Lens Optic | yes |
Electrical Data |
|
|---|---|
| Supply Voltage | 10 … 30 V DC |
| Current Consumption (Ub = 24 V) | < 40 mA |
| Switching Frequency | 1,600 Hz |
| Response Time | 313 µs |
| On-/Off-Delay (RS-232) | 0 … 5 s |
| Temperature Drift | < 5 % |
| Temperature Range | -10 … 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 200 mA |
| Residual Current Switching Output | < 50 µA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Lockable | yes |
| Teach Mode | NT, MT, XT |
| Protection Class | III |
Mechanical Data |
|
|---|---|
| Setting Method | Teach-In |
| Housing Material | Stainless steel, V4A (1.4404 / 316L) |
| Degree of Protection | IP68/IP69K |
| Connection | M12 × 1; 4-pin |
| Optic Cover | Glass |
| Material Control Panel | Plastic, PC (FDA) |
| Ecolab | yes |
| Weight | 104 g |
Output |
|
|---|---|
| PNP NC | yes |
| RS-232 with Adapterbox | yes |
Adjustable parameters |
|
|---|---|
| Circuit | NC NC/NO NO |
Reflector data |
|
|---|---|
| RQ100BA | 0 … 4 m |
| RE18040BA | 0 … 2.5 m |
| RQ84BA | 0 … 3.5 m |
| RR84BA | 0 … 4 m |
| RE9538BA | 0 … 1.5 m |
| RE6151BM | 0 … 3.4 m |
| RR50_A | 0 … 2.6 m |
| RE6040BA | 0 … 3.2 m |
| RE8222BA | 0 … 1.9 m |
| RR34_M | 0 … 1.6 m |
| RE3220BM | 0 … 0.8 m |
| RE6210BM | 0 … 0.7 m |
| RR25_M | 0 … 1 m |
| RR25KP | 0 … 0.55 m |
| RR21_M | 0 … 0.9 m |
| Z90R001 | 0 … 0.7 m |
| ZRAE02B01 | 0 … 1.6 m |
| ZRDS01R01 | 0 … 0.7 m |
| ZRME01B01 | 0 … 0.4 m |
| ZRME03B01 | 0 … 1.6 m |
| ZRMR02K01 | 0 … 0.5 m |
| ZRMS02_01 | 0 … 0.7 m |
| Z90R012 | 0 … 1 m |
| Z90R013 | 0 … 2.57 m |
| Z90R014 | 0 … 2.3 m |
| Z90R015 | 0 … 1.35 m |
