CAMOZZI 454-015-22
G77

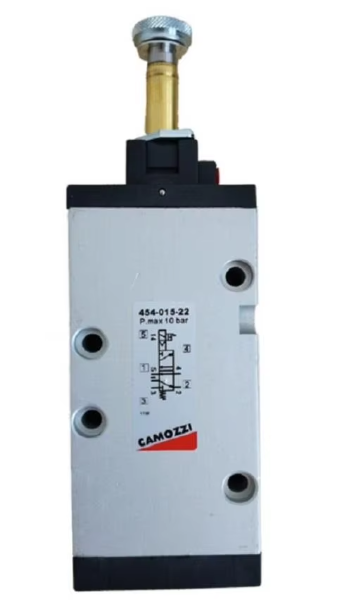

CAMOZZI 454-015-22 – 5/2, G1/4, Single Solenoid, Spring Return, Series 4 Valves and Solenoid Valves
Electropneumatically actuated with mechanical spring return
Electropneumatically actuated and return with external and internal air pressure supply
Series 4 valves are equipped with a manual override which allows a stable operation / suitable for mounting in arduous conditions.
All these valves can be operated by solenoids Series U; G A8 and H8.
Pneumatically actuated valves 3/2NC become NO when the supply is on connection 3.
The different ports allow flows from 650 to 4000 Nl/min
New models available — with G3/8 ports and 1800 Nl/min flow
Description
Camozzi series 4 solenoid valves have been designed in the 3/2, 5/2 and 5/3 versions and with the following two devices of actuation. Electropneumatically actuated with mechanical spring return. Electropneumatically actuated and return with external and internal air pressure supply. Series 4 valves are equipped with a manual override which allows for stable operation and mounting in arduous conditions.
Part Reference: 454-015-22
Specifications
5-ports 2-positions
Monostable
mech. spring reset
horizontal solen.
valve diagram EV18
Balanced spool valve
filtered air (without lubrication) as input medium
G1/4″ / 1/4″ BSPP threaded (female) pneumatic port
H181mm x W33mm x D51mm
Stainless steel spool
Technopolymer end cover
NBR PU seal
