Description

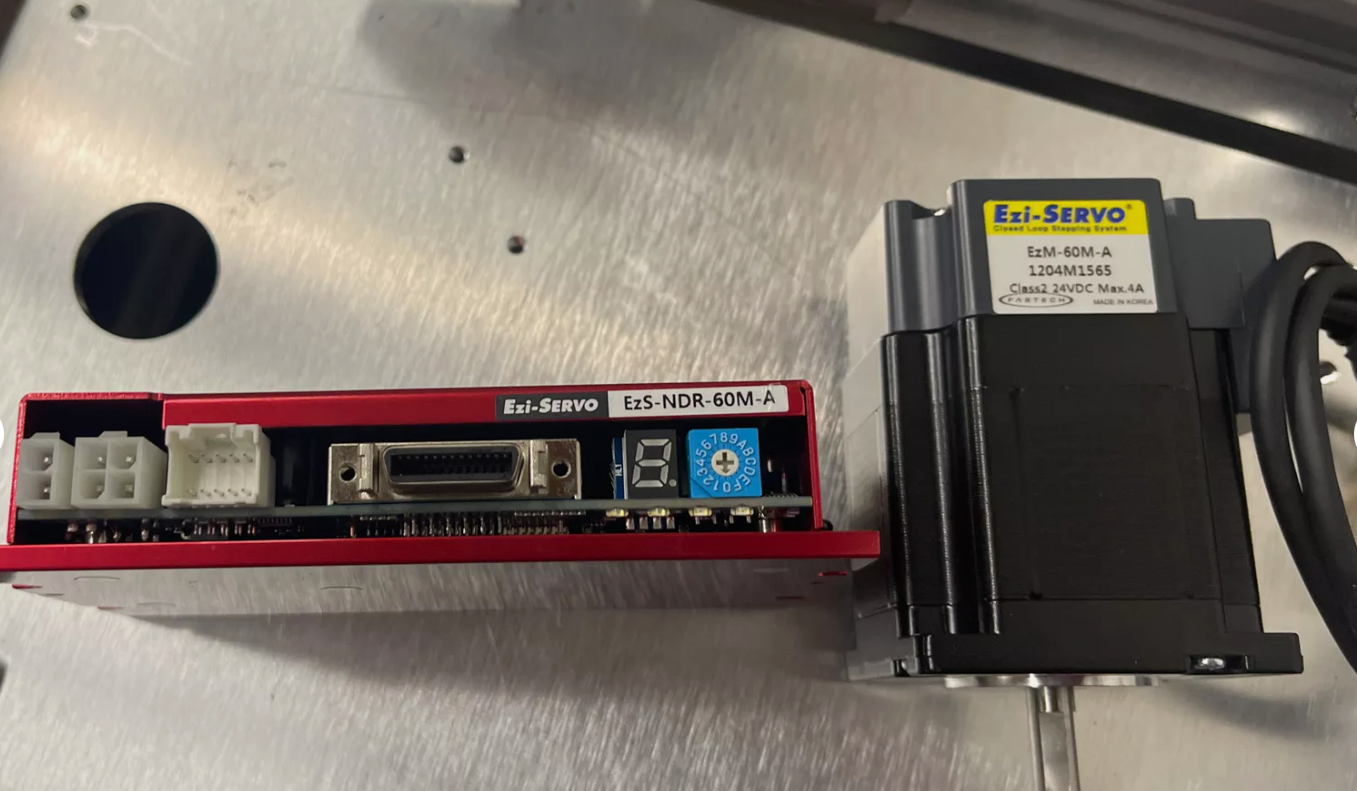

FASTECH EZS-NDR-60M-A
EZM-60L-A
-Thiết kế nhỏ gọn nhưng lại có công suất lớn, momen xoắn cao, chạy nhanh mạnh, có chức năng bảo toàn momen rất thông minh khi tải thay đổi nhiều mà không bị giật như các driver khác. Nếu các bạn đã dùng nhiều loại servo driver thì dùng bộ này là sẽ thích ngay!
-Chức năng truyền thông nối tiếp rất tiện dụng để kết nối thành mạng điều khiển dùng PLC.
-Dễ dàng điều khiển với phương pháp dùng xung ngoài Pulse+ Direction & communication control
-Rất thuận tiện để mount vào các Single Axis Robot, các máy CNC…
Drive Specification
| Motor Model | EzM-20 series | EzM-28 series | EzM-35 series | EzM-42 series | EzM-56 series | EzM-60 series | EzM-86 series | |
|---|---|---|---|---|---|---|---|---|
| Drive Model | EzS-NDR- 20 series |
EzS-NDR- 28 series |
EzS-NDR- 35 series |
EzS-NDR- 42 series |
EzS-NDR- 56 series |
EzS-NDR- 60 series |
EzS-NDR- 86 series |
|
| Input Voltage | 24VDC ±10% | 40~70 VDC | ||||||
| Control Method | Closed loop control with 32bit MCU | |||||||
| Multi Axes Drive | Maximum 16 axes through Daisy-Chain | |||||||
| Operating Condition | Ambient Temperature | · In Use: 0~50˚C · In Storage: -20~70˚C | ||||||
| Humidity | · In Use: 35~85% RH (Non-Condensing) · In Storage: 10~90% RH (Non-Condensing) | |||||||
| Vib. Resist | 0.5g | |||||||
| Function | Rotation Speed | 0~3,000 [rpm]*1 | ||||||
| Resolution [ppr] | 4,000/Rev. Encoder model: 500 1,000 1,600 2,000 3,600 5,000 6,400 7,200 10,000 4,000 10,000/Rev. Encoder model: 500 1,000 1,600 2,000 3,600 5,000 6,400 7,200 10,000 16,000/Rev. Encoder model: 500 1,000 1,600 2,000 3,600 5,000 6,400 7,200 10,000 16,000 20,000/Rev. Encoder model: 500 1,000 1,600 2,000 3,600 5,000 6,400 7,200 10,000 20,000 32,000/Rev. Encoder model: 500 1,000 1,600 2,000 3,600 5,000 6,400 7,200 10,000 32,000 (Selectable by parameter)*2 |
|||||||
| Protection Functions | Over Current Error, Over Speed Error, Position Tracking Error, Over Load Error, Over Temperature Error, Over Regenerated Voltage Error, Motor Connect Error, Encoder Connect Error, In-Position Error, System Error, ROM Error, Position Overflow Error | |||||||
| LED Display | Power Status, In-Position Status, Servo On Status, Alarm Status | |||||||
| In-Position Selection | 0~15 (Selectable by parameter) | |||||||
| Position Gain Selection | 0~15 (Selectable by pparameter) | |||||||
| Rotational Direction | CW/CCW (Selectable by Parameter) | |||||||
| I/O Signal | Input Signal | 3 dedicated inputs (LIMIT+, LIMIT-, ORIGIN), 9 programmable inputs (Photocoupler) | ||||||
| Output Signal | 1 dedicated output (Compare Out), 9 programmable outputs (Photocoupler), Brake | |||||||
| Communication Interface | RS-485 serial communication Communication speed: 9,600~921,600 [bps] |
|||||||
| Position Control | · Incremental mode / Absolute mode Data Range: -134,217,728 to +134,217,727 [pulse] · Operating speed: Max. 3,000 [rpm] |
|||||||
| Return to Origin | Origin Sensor, Z phase, ±Limit sensor, Torque | |||||||
| GUI | User Interface Program within Windows | |||||||
| Software | Motion Library (DLL) for Windows 7/8/10 | |||||||
- * 1 : Up to the resolution of 10,000[ppr], maximum speed can be reached by 3,000[rpm] and with the resolution more than 10,000[ppr], maximum speed shall be reduced accordingly.
- * 2 : When selected resolution is more than encoder resolution, motor shall be operated by microstep between pulses
Các mã hàng tương tự
| UNIT No. | MOTOR No. | DRIVE No. |
|---|---|---|
| Ezi-SERVO-PR-20M-F | EzM-20M-F | EzS-NDR-20M-F |
| Ezi-SERVO-PR-20L-F | EzM-20L-F | EzS-NDR-20L-F |
| Ezi-SERVO-PR-28S-D | EzM-28S-D | EzS-NDR-28S-D |
| Ezi-SERVO-PR-28SM-D | EzM-28SM-D | EzS-NDR-28S-D |
| Ezi-SERVO-PR-28M-D | EzM-28M-D | EzS-NDR-28M-D |
| Ezi-SERVO-PR-28MM-D | EzM-28MM-D | EzS-NDR-28M-D |
| Ezi-SERVO-PR-28L-D | EzM-28L-D | EzS-NDR-28L-D |
| Ezi-SERVO-PR-28LM-D | EzM-28LM-D | EzS-NDR-28L-D |
| Ezi-SERVO-PR-35M-D | EzM-35M-D | EzS-NDR-35M-D |
| Ezi-SERVO-PR-35MM-D | EzM-35MM-D | EzS-NDR-35M-D |
| Ezi-SERVO-PR-35L-D | EzM-35L-D | EzS-NDR-35L-D |
| Ezi-SERVO-PR-35LM-D | EzM-35LM-D | EzS-NDR-35L-D |
| Ezi-SERVO-PR-42S-A | EzM-42S-A | EzS-NDR-42S-A |
| Ezi-SERVO-PR-42S-B | EzM-42S-B | EzS-NDR-42S-B |
| Ezi-SERVO-PR-42S-C | EzM-42S-C | EzS-NDR-42S-C |
| Ezi-SERVO-PR-42M-A | EzM-42M-A | EzS-NDR-42M-A |
| Ezi-SERVO-PR-42M-B | EzM-42M-B | EzS-NDR-42M-B |
| Ezi-SERVO-PR-42M-C | EzM-42M-C | EzS-NDR-42M-C |
| Ezi-SERVO-PR-42L-A | EzM-42L-A | EzS-NDR-42L-A |
| Ezi-SERVO-PR-42L-B | EzM-42L-B | EzS-NDR-42L-B |
| Ezi-SERVO-PR-42L-C | EzM-42L-C | EzS-NDR-42L-C |
| Ezi-SERVO-PR-42XL-A | EzM-42XL-A | EzS-NDR-42XL-A |
| Ezi-SERVO-PR-42XL-B | EzM-42XL-B | EzS-NDR-42XL-B |
| Ezi-SERVO-PR-42XL-C | EzM-42XL-C | EzS-NDR-42XL-C |
| Ezi-SERVO-PR-56S-A | EzM-56S-A | EzS-NDR-56S-A |
| Ezi-SERVO-PR-56S-B | EzM-56S-B | EzS-NDR-56S-B |
| UNIT No. | MOTOR No. | DRIVE No. |
|---|---|---|
| Ezi-SERVO-PR-56S-C | EzM-56S-C | EzS-NDR-56S-C |
| Ezi-SERVO-PR-56M-A | EzM-56M-A | EzS-NDR-56M-A |
| Ezi-SERVO-PR-56M-B | EzM-56M-B | EzS-NDR-56M-B |
| Ezi-SERVO-PR-56M-C | EzM-56M-C | EzS-NDR-56M-C |
| Ezi-SERVO-PR-56L-A | EzM-56L-A | EzS-NDR-56L-A |
| Ezi-SERVO-PR-56L-B | EzM-56L-B | EzS-NDR-56L-B |
| Ezi-SERVO-PR-56L-C | EzM-56L-C | EzS-NDR-56L-C |
| Ezi-SERVO-PR-60S-A | EzM-60S-A | EzS-NDR-60S-A |
| Ezi-SERVO-PR-60S-B | EzM-60S-B | EzS-NDR-60S-B |
| Ezi-SERVO-PR-60S-C | EzM-60S-C | EzS-NDR-60S-C |
| Ezi-SERVO-PR-60M-A | EzM-60M-A | EzS-NDR-60M-A |
| Ezi-SERVO-PR-60M-B | EzM-60M-B | EzS-NDR-60M-B |
| Ezi-SERVO-PR-60M-C | EzM-60M-C | EzS-NDR-60M-C |
| Ezi-SERVO-PR-60L-A | EzM-60L-A | EzS-NDR-60L-A |
| Ezi-SERVO-PR-60L-B | EzM-60L-B | EzS-NDR-60L-B |
| Ezi-SERVO-PR-60L-C | EzM-60L-C | EzS-NDR-60L-C |
| Ezi-SERVO-PR-86M-A | EzM-86M-A | EzS-NDR-86M-A |
| Ezi-SERVO-PR-86M-B | EzM-86M-B | EzS-NDR-86M-B |
| Ezi-SERVO-PR-86M-C | EzM-86M-C | EzS-NDR-86M-C |
| Ezi-SERVO-PR-86L-A | EzM-86L-A | EzS-NDR-86L-A |
| Ezi-SERVO-PR-86L-B | EzM-86L-B | EzS-NDR-86L-B |
| Ezi-SERVO-PR-86L-C | EzM-86L-C | EzS-NDR-86L-C |
| Ezi-SERVO-PR-86XL-A | EzM-86XL-A | EzS-NDR-86XL-A |
| Ezi-SERVO-PR-86XL-B | EzM-86XL-B | EzS-NDR-86XL-B |
| Ezi-SERVO-PR-86XL-C | EzM-86XL-C | EzS-NDR-86XL-C |
＊ 28mm, 35mm Stopper type 모터의 경우 주문 시 표준 모터 품명 뒤에 “M”을 추가로 표기하여 주문해주시기 바랍니다. (예, Ezi-SERVO-PR-28LM-D, Ezi-SERVO-PR-35LM-D)
◆ 브레이크 장착형
| UNIT No. | MOTOR No. | DRIVE No. |
|---|---|---|
| Ezi-SERVO-PR-42S-A-BK | EzM-42S-A-BK | EzS-NDR-42S-A |
| Ezi-SERVO-PR-42S-B-BK | EzM-42S-B-BK | EzS-NDR-42S-B |
| Ezi-SERVO-PR-42M-A-BK | EzM-42M-A-BK | EzS-NDR-42M-A |
| Ezi-SERVO-PR-42M-B-BK | EzM-42M-B-BK | EzS-NDR-42M-B |
| Ezi-SERVO-PR-42L-A-BK | EzM-42L-A-BK | EzS-NDR-42L-A |
| Ezi-SERVO-PR-42L-B-BK | EzM-42L-B-BK | EzS-NDR-42L-B |
| Ezi-SERVO-PR-42XL-A-BK | EzM-42XL-A-BK | EzS-NDR-42XL-A |
| Ezi-SERVO-PR-42XL-B-BK | EzM-42XL-B-BK | EzS-NDR-42XL-B |
| Ezi-SERVO-PR-56S-A-BK | EzM-56S-A-BK | EzS-NDR-56S-A |
| Ezi-SERVO-PR-56S-B-BK | EzM-56S-B-BK | EzS-NDR-56S-B |
| Ezi-SERVO-PR-56M-A-BK | EzM-56M-A-BK | EzS-NDR-56M-A |
| Ezi-SERVO-PR-56M-B-BK | EzM-56M-B-BK | EzS-NDR-56M-B |
| Ezi-SERVO-PR-56L-A-BK | EzM-56L-A-BK | EzS-NDR-56L-A |
| UNIT No. | MOTOR No. | DRIVE No. |
|---|---|---|
| Ezi-SERVO-PR-56L-B-BK | EzM-56L-B-BK | EzS-NDR-56L-B |
| Ezi-SERVO-PR-60S-A-BK | EzM-60S-A-BK | EzS-NDR-60S-A |
| Ezi-SERVO-PR-60S-B-BK | EzM-60S-B-BK | EzS-NDR-60S-B |
| Ezi-SERVO-PR-60M-A-BK | EzM-60M-A-BK | EzS-NDR-60M-A |
| Ezi-SERVO-PR-60M-B-BK | EzM-60M-B-BK | EzS-NDR-60M-B |
| Ezi-SERVO-PR-60L-A-BK | EzM-60L-A-BK | EzS-NDR-60L-A |
| Ezi-SERVO-PR-60L-B-BK | EzM-60L-B-BK | EzS-NDR-60L-B |
| Ezi-SERVO-PR-86M-A-BK | EzM-86M-A-BK | EzS-NDR-86M-A |
| Ezi-SERVO-PR-86M-B-BK | EzM-86M-B-BK | EzS-NDR-86M-B |
| Ezi-SERVO-PR-86L-A-BK | EzM-86L-A-BK | EzS-NDR-86L-A |
| Ezi-SERVO-PR-86L-B-BK | EzM-86L-B-BK | EzS-NDR-86L-B |
| Ezi-SERVO-PR-86XL-A-BK | EzM-86XL-A-BK | EzS-NDR-86XL-A |
| Ezi-SERVO-PR-86XL-B-BK | EzM-86XL-B-BK | EzS-NDR-86XL-B |
◆ 감속기 장착형
| UNIT No. | MOTOR No. | DRIVE No. | 감속비 |
|---|---|---|---|
| Ezi-SERVO-PR-42S-A-PN3 | EzM-42S-A-PN3 | EzS-NDR-42S-A | 1:3 |
| Ezi-SERVO-PR-42S-B-PN3 | EzM-42S-B-PN3 | EzS-NDR-42S-B | |
| Ezi-SERVO-PR-42S-A-PN5 | EzM-42S-A-PN5 | EzS-NDR-42S-A | 1:5 |
| Ezi-SERVO-PR-42S-B-PN5 | EzM-42S-B-PN5 | EzS-NDR-42S-B | |
| Ezi-SERVO-PR-42S-A-PN8 | EzM-42S-A-PN8 | EzS-NDR-42S-A | 1:8 |
| Ezi-SERVO-PR-42S-B-PN8 | EzM-42S-B-PN8 | EzS-NDR-42S-B | |
| Ezi-SERVO-PR-42S-A-PN10 | EzM-42S-A-PN10 | EzS-NDR-42S-A | 1:10 |
| Ezi-SERVO-PR-42S-B-PN10 | EzM-42S-B-PN10 | EzS-NDR-42S-B | |
| Ezi-SERVO-PR-42S-A-PN15 | EzM-42S-A-PN15 | EzS-NDR-42S-A | 1:15 |
| Ezi-SERVO-PR-42S-B-PN15 | EzM-42S-B-PN15 | EzS-NDR-42S-B | |
| Ezi-SERVO-PR-42S-A-PN25 | EzM-42S-A-PN25 | EzS-NDR-42S-A | 1:25 |
| Ezi-SERVO-PR-42S-B-PN25 | EzM-42S-B-PN25 | EzS-NDR-42S-B | |
| Ezi-SERVO-PR-42S-A-PN40 | EzM-42S-A-PN40 | EzS-NDR-42S-A | 1:40 |
| Ezi-SERVO-PR-42S-B-PN40 | EzM-42S-B-PN40 | EzS-NDR-42S-B | |
| Ezi-SERVO-PR-42S-A-PN50 | EzM-42S-A-PN50 | EzS-NDR-42S-A | 1:50 |
| Ezi-SERVO-PR-42S-B-PN50 | EzM-42S-B-PN50 | EzS-NDR-42S-B | |
| Ezi-SERVO-PR-42M-A-PN3 | EzM-42M-A-PN3 | EzS-NDR-42M-A | 1:3 |
| Ezi-SERVO-PR-42M-B-PN3 | EzM-42M-B-PN3 | EzS-NDR-42M-B | |
| Ezi-SERVO-PR-42M-A-PN5 | EzM-42M-A-PN5 | EzS-NDR-42M-A | 1:5 |
| Ezi-SERVO-PR-42M-B-PN5 | EzM-42M-B-PN5 | EzS-NDR-42M-B | |
| Ezi-SERVO-PR-42M-A-PN8 | EzM-42M-A-PN8 | EzS-NDR-42M-A | 1:8 |
| Ezi-SERVO-PR-42M-B-PN8 | EzM-42M-B-PN8 | EzS-NDR-42M-B | |
| Ezi-SERVO-PR-42M-A-PN10 | EzM-42M-A-PN10 | EzS-NDR-42M-A | 1:10 |
| Ezi-SERVO-PR-42M-B-PN10 | EzM-42M-B-PN10 | EzS-NDR-42M-B | |
| Ezi-SERVO-PR-42M-A-PN15 | EzM-42M-A-PN15 | EzS-NDR-42M-A | 1:15 |
| Ezi-SERVO-PR-42M-B-PN15 | EzM-42M-B-PN15 | EzS-NDR-42M-B | |
| Ezi-SERVO-PR-42M-A-PN25 | EzM-42M-A-PN25 | EzS-NDR-42M-A | 1:25 |
| Ezi-SERVO-PR-42M-B-PN25 | EzM-42M-B-PN25 | EzS-NDR-42M-B | |
| Ezi-SERVO-PR-42M-A-PN40 | EzM-42M-A-PN40 | EzS-NDR-42M-A | 1:40 |
| Ezi-SERVO-PR-42M-B-PN40 | EzM-42M-B-PN40 | EzS-NDR-42M-B | |
| Ezi-SERVO-PR-42M-A-PN50 | EzM-42M-A-PN50 | EzS-NDR-42M-A | 1:50 |
| Ezi-SERVO-PR-42M-B-PN50 | EzM-42M-B-PN50 | EzS-NDR-42M-B | |
| Ezi-SERVO-PR-42L-A-PN3 | EzM-42L-A-PN3 | EzS-NDR-42L-A | 1:3 |
| Ezi-SERVO-PR-42L-B-PN3 | EzM-42L-B-PN3 | EzS-NDR-42L-B | |
| Ezi-SERVO-PR-42L-A-PN5 | EzM-42L-A-PN5 | EzS-NDR-42L-A | 1:5 |
| Ezi-SERVO-PR-42L-B-PN5 | EzM-42L-B-PN5 | EzS-NDR-42L-B | |
| Ezi-SERVO-PR-42L-A-PN8 | EzM-42L-A-PN8 | EzS-NDR-42L-A | 1:8 |
| Ezi-SERVO-PR-42L-B-PN8 | EzM-42L-B-PN8 | EzS-NDR-42L-B | |
| Ezi-SERVO-PR-42L-A-PN10 | EzM-42L-A-PN10 | EzS-NDR-42L-A | 1:10 |
| Ezi-SERVO-PR-42L-B-PN10 | EzM-42L-B-PN10 | EzS-NDR-42L-B | |
| Ezi-SERVO-PR-42L-A-PN15 | EzM-42L-A-PN15 | EzS-NDR-42L-A | 1:15 |
| Ezi-SERVO-PR-42L-B-PN15 | EzM-42L-B-PN15 | EzS-NDR-42L-B | |
| Ezi-SERVO-PR-42L-A-PN25 | EzM-42L-A-PN25 | EzS-NDR-42L-A | 1:25 |
| Ezi-SERVO-PR-42L-B-PN25 | EzM-42L-B-PN25 | EzS-NDR-42L-B | |
| Ezi-SERVO-PR-42L-A-PN40 | EzM-42L-A-PN40 | EzS-NDR-42L-A | 1:40 |
| Ezi-SERVO-PR-42L-B-PN40 | EzM-42L-B-PN40 | EzS-NDR-42L-B | |
| Ezi-SERVO-PR-42L-A-PN50 | EzM-42L-A-PN50 | EzS-NDR-42L-A | 1:50 |
| Ezi-SERVO-PR-42L-B-PN50 | EzM-42L-B-PN50 | EzS-NDR-42L-B | |
| Ezi-SERVO-PR-42XL-A-PN3 | EzM-42XL-A-PN3 | EzS-NDR-42XL-A | 1:3 |
| Ezi-SERVO-PR-42XL-B-PN3 | EzM-42XL-B-PN3 | EzS-NDR-42XL-B | |
| Ezi-SERVO-PR-42XL-A-PN5 | EzM-42XL-A-PN5 | EzS-NDR-42XL-A | 1:5 |
| Ezi-SERVO-PR-42XL-B-PN5 | EzM-42XL-B-PN5 | EzS-NDR-42XL-B | |
| Ezi-SERVO-PR-42XL-A-PN8 | EzM-42XL-A-PN8 | EzS-NDR-42XL-A | 1:8 |
| Ezi-SERVO-PR-42XL-B-PN8 | EzM-42XL-B-PN8 | EzS-NDR-42XL-B | |
| Ezi-SERVO-PR-42XL-A-PN10 | EzM-42XL-A-PN10 | EzS-NDR-42XL-A | 1:10 |
| Ezi-SERVO-PR-42XL-B-PN10 | EzM-42XL-B-PN10 | EzS-NDR-42XL-B | |
| Ezi-SERVO-PR-42XL-A-PN15 | EzM-42XL-A-PN15 | EzS-NDR-42XL-A | 1:15 |
| Ezi-SERVO-PR-42XL-B-PN15 | EzM-42XL-B-PN15 | EzS-NDR-42XL-B | |
| Ezi-SERVO-PR-42XL-A-PN25 | EzM-42XL-A-PN25 | EzS-NDR-42XL-A | 1:25 |
| Ezi-SERVO-PR-42XL-B-PN25 | EzM-42XL-B-PN25 | EzS-NDR-42XL-B | |
| Ezi-SERVO-PR-42XL-A-PN40 | EzM-42XL-A-PN40 | EzS-NDR-42XL-A | 1:40 |
| Ezi-SERVO-PR-42XL-B-PN40 | EzM-42XL-B-PN40 | EzS-NDR-42XL-B | |
| Ezi-SERVO-PR-42XL-A-PN50 | EzM-42XL-A-PN50 | EzS-NDR-42XL-A | 1:50 |
| Ezi-SERVO-PR-42XL-B-PN50 | EzM-42XL-B-PN50 | EzS-NDR-42XL-B | |
| Ezi-SERVO-PR-56S-A-PN3 | EzM-56S-A-PN3 | EzS-NDR-56S-A | 1:3 |
| Ezi-SERVO-PR-56S-B-PN3 | EzM-56S-B-PN3 | EzS-NDR-56S-B | |
| Ezi-SERVO-PR-56S-A-PN5 | EzM-56S-A-PN5 | EzS-NDR-56S-A | 1:5 |
| Ezi-SERVO-PR-56S-B-PN5 | EzM-56S-B-PN5 | EzS-NDR-56S-B | |
| Ezi-SERVO-PR-56S-A-PN8 | EzM-56S-A-PN8 | EzS-NDR-56S-A | 1:8 |
| Ezi-SERVO-PR-56S-B-PN8 | EzM-56S-B-PN8 | EzS-NDR-56S-B | |
| Ezi-SERVO-PR-56S-A-PN10 | EzM-56S-A-PN10 | EzS-NDR-56S-A | 1:10 |
| Ezi-SERVO-PR-56S-B-PN10 | EzM-56S-B-PN10 | EzS-NDR-56S-B | |
| Ezi-SERVO-PR-56S-A-PN15 | EzM-56S-A-PN15 | EzS-NDR-56S-A | 1:15 |
| Ezi-SERVO-PR-56S-B-PN15 | EzM-56S-B-PN15 | EzS-NDR-56S-B | |
| Ezi-SERVO-PR-56S-A-PN25 | EzM-56S-A-PN25 | EzS-NDR-56S-A | 1:25 |
| Ezi-SERVO-PR-56S-B-PN25 | EzM-56S-B-PN25 | EzS-NDR-56S-B | |
| Ezi-SERVO-PR-56S-A-PN40 | EzM-56S-A-PN40 | EzS-NDR-56S-A | 1:40 |
| Ezi-SERVO-PR-56S-B-PN40 | EzM-56S-B-PN40 | EzS-NDR-56S-B | |
| Ezi-SERVO-PR-56S-A-PN50 | EzM-56S-A-PN50 | EzS-NDR-56S-A | 1:50 |
| Ezi-SERVO-PR-56S-B-PN50 | EzM-56S-B-PN50 | EzS-NDR-56S-B | |
| Ezi-SERVO-PR-56M-A-PN3 | EzM-56M-A-PN3 | EzS-NDR-56M-A | 1:3 |
| Ezi-SERVO-PR-56M-B-PN3 | EzM-56M-B-PN3 | EzS-NDR-56M-B | |
| Ezi-SERVO-PR-56M-A-PN5 | EzM-56M-A-PN5 | EzS-NDR-56M-A | 1:5 |
| Ezi-SERVO-PR-56M-B-PN5 | EzM-56M-B-PN5 | EzS-NDR-56M-B | |
| Ezi-SERVO-PR-56M-A-PN8 | EzM-56M-A-PN8 | EzS-NDR-56M-A | 1:8 |
| Ezi-SERVO-PR-56M-B-PN8 | EzM-56M-B-PN8 | EzS-NDR-56M-B | |
| Ezi-SERVO-PR-56M-A-PN10 | EzM-56M-A-PN10 | EzS-NDR-56M-A | 1:10 |
| Ezi-SERVO-PR-56M-B-PN10 | EzM-56M-B-PN10 | EzS-NDR-56M-B | |
| Ezi-SERVO-PR-56M-A-PN15 | EzM-56M-A-PN15 | EzS-NDR-56M-A | 1:15 |
| Ezi-SERVO-PR-56M-B-PN15 | EzM-56M-B-PN15 | EzS-NDR-56M-B | |
| Ezi-SERVO-PR-56M-A-PN25 | EzM-56M-A-PN25 | EzS-NDR-56M-A | 1:25 |
| Ezi-SERVO-PR-56M-B-PN25 | EzM-56M-B-PN25 | EzS-NDR-56M-B | |
| Ezi-SERVO-PR-56M-A-PN40 | EzM-56M-A-PN40 | EzS-NDR-56M-A | 1:40 |
| Ezi-SERVO-PR-56M-B-PN40 | EzM-56M-B-PN40 | EzS-NDR-56M-B | |
| Ezi-SERVO-PR-56M-A-PN50 | EzM-56M-A-PN50 | EzS-NDR-56M-A | 1:50 |
| Ezi-SERVO-PR-56M-B-PN50 | EzM-56M-B-PN50 | EzS-NDR-56M-B | |
| Ezi-SERVO-PR-56L-A-PN3 | EzM-56L-A-PN3 | EzS-NDR-56L-A | 1:3 |
| Ezi-SERVO-PR-56L-B-PN3 | EzM-56L-B-PN3 | EzS-NDR-56L-B | |
| Ezi-SERVO-PR-56L-A-PN5 | EzM-56L-A-PN5 | EzS-NDR-56L-A | 1:5 |
| Ezi-SERVO-PR-56L-B-PN5 | EzM-56L-B-PN5 | EzS-NDR-56L-B | |
| Ezi-SERVO-PR-56L-A-PN8 | EzM-56L-A-PN8 | EzS-NDR-56L-A | 1:8 |
| Ezi-SERVO-PR-56L-B-PN8 | EzM-56L-B-PN8 | EzS-NDR-56L-B | |
| Ezi-SERVO-PR-56L-A-PN10 | EzM-56L-A-PN10 | EzS-NDR-56L-A | 1:10 |
| Ezi-SERVO-PR-56L-B-PN10 | EzM-56L-B-PN10 | EzS-NDR-56L-B |
| UNIT No. | MOTOR No. | DRIVE No. | 감속비 |
|---|---|---|---|
| Ezi-SERVO-PR-56L-A-PN15 | EzM-56L-A-PN15 | EzS-NDR-56L-A | 1:15 |
| Ezi-SERVO-PR-56L-B-PN15 | EzM-56L-B-PN15 | EzS-NDR-56L-B | |
| Ezi-SERVO-PR-56L-A-PN25 | EzM-56L-A-PN25 | EzS-NDR-56L-A | 1:25 |
| Ezi-SERVO-PR-56L-B-PN25 | EzM-56L-B-PN25 | EzS-NDR-56L-B | |
| Ezi-SERVO-PR-56L-A-PN40 | EzM-56L-A-PN40 | EzS-NDR-56L-A | 1:40 |
| Ezi-SERVO-PR-56L-B-PN40 | EzM-56L-B-PN40 | EzS-NDR-56L-B | |
| Ezi-SERVO-PR-56L-A-PN50 | EzM-56L-A-PN50 | EzS-NDR-56L-A | 1:50 |
| Ezi-SERVO-PR-56L-B-PN50 | EzM-56L-B-PN50 | EzS-NDR-56L-B | |
| Ezi-SERVO-PR-60S-A-PN3 | EzM-60S-A-PN3 | EzS-NDR-60S-A | 1:3 |
| Ezi-SERVO-PR-60S-B-PN3 | EzM-60S-B-PN3 | EzS-NDR-60S-B | |
| Ezi-SERVO-PR-60S-A-PN5 | EzM-60S-A-PN5 | EzS-NDR-60S-A | 1:5 |
| Ezi-SERVO-PR-60S-B-PN5 | EzM-60S-B-PN5 | EzS-NDR-60S-B | |
| Ezi-SERVO-PR-60S-A-PN8 | EzM-60S-A-PN8 | EzS-NDR-60S-A | 1:8 |
| Ezi-SERVO-PR-60S-B-PN8 | EzM-60S-B-PN8 | EzS-NDR-60S-B | |
| Ezi-SERVO-PR-60S-A-PN10 | EzM-60S-A-PN10 | EzS-NDR-60S-A | 1:10 |
| Ezi-SERVO-PR-60S-B-PN10 | EzM-60S-B-PN10 | EzS-NDR-60S-B | |
| Ezi-SERVO-PR-60S-A-PN15 | EzM-60S-A-PN15 | EzS-NDR-60S-A | 1:15 |
| Ezi-SERVO-PR-60S-B-PN15 | EzM-60S-B-PN15 | EzS-NDR-60S-B | |
| Ezi-SERVO-PR-60S-A-PN25 | EzM-60S-A-PN25 | EzS-NDR-60S-A | 1:25 |
| Ezi-SERVO-PR-60S-B-PN25 | EzM-60S-B-PN25 | EzS-NDR-60S-B | |
| Ezi-SERVO-PR-60S-A-PN40 | EzM-60S-A-PN40 | EzS-NDR-60S-A | 1:40 |
| Ezi-SERVO-PR-60S-B-PN40 | EzM-60S-B-PN40 | EzS-NDR-60S-B | |
| Ezi-SERVO-PR-60S-A-PN50 | EzM-60S-A-PN50 | EzS-NDR-60S-A | 1:50 |
| Ezi-SERVO-PR-60S-B-PN50 | EzM-60S-B-PN50 | EzS-NDR-60S-B | |
| Ezi-SERVO-PR-60M-A-PN3 | EzM-60M-A-PN3 | EzS-NDR-60M-A | 1:3 |
| Ezi-SERVO-PR-60M-B-PN3 | EzM-60M-B-PN3 | EzS-NDR-60M-B | |
| Ezi-SERVO-PR-60M-A-PN5 | EzM-60M-A-PN5 | EzS-NDR-60M-A | 1:5 |
| Ezi-SERVO-PR-60M-B-PN5 | EzM-60M-B-PN5 | EzS-NDR-60M-B | |
| Ezi-SERVO-PR-60M-A-PN8 | EzM-60M-A-PN8 | EzS-NDR-60M-A | 1:8 |
| Ezi-SERVO-PR-60M-B-PN8 | EzM-60M-B-PN8 | EzS-NDR-60M-B | |
| Ezi-SERVO-PR-60M-A-PN10 | EzM-60M-A-PN10 | EzS-NDR-60M-A | 1:10 |
| Ezi-SERVO-PR-60M-B-PN10 | EzM-60M-B-PN10 | EzS-NDR-60M-B | |
| Ezi-SERVO-PR-60M-A-PN15 | EzM-60M-A-PN15 | EzS-NDR-60M-A | 1:15 |
| Ezi-SERVO-PR-60M-B-PN15 | EzM-60M-B-PN15 | EzS-NDR-60M-B | |
| Ezi-SERVO-PR-60M-A-PN25 | EzM-60M-A-PN25 | EzS-NDR-60M-A | 1:25 |
| Ezi-SERVO-PR-60M-B-PN25 | EzM-60M-B-PN25 | EzS-NDR-60M-B | |
| Ezi-SERVO-PR-60M-A-PN40 | EzM-60M-A-PN40 | EzS-NDR-60M-A | 1:40 |
| Ezi-SERVO-PR-60M-B-PN40 | EzM-60M-B-PN40 | EzS-NDR-60M-B | |
| Ezi-SERVO-PR-60M-A-PN50 | EzM-60M-A-PN50 | EzS-NDR-60M-A | 1:50 |
| Ezi-SERVO-PR-60M-B-PN50 | EzM-60M-B-PN50 | EzS-NDR-60M-B | |
| Ezi-SERVO-PR-60L-A-PN3 | EzM-60L-A-PN3 | EzS-NDR-60L-A | 1:3 |
| Ezi-SERVO-PR-60L-B-PN3 | EzM-60L-B-PN3 | EzS-NDR-60L-B | |
| Ezi-SERVO-PR-60L-A-PN5 | EzM-60L-A-PN5 | EzS-NDR-60L-A | 1:5 |
| Ezi-SERVO-PR-60L-B-PN5 | EzM-60L-B-PN5 | EzS-NDR-60L-B | |
| Ezi-SERVO-PR-60L-A-PN8 | EzM-60L-A-PN8 | EzS-NDR-60L-A | 1:8 |
| Ezi-SERVO-PR-60L-B-PN8 | EzM-60L-B-PN8 | EzS-NDR-60L-B | |
| Ezi-SERVO-PR-60L-A-PN10 | EzM-60L-A-PN10 | EzS-NDR-60L-A | 1:10 |
| Ezi-SERVO-PR-60L-B-PN10 | EzM-60L-B-PN10 | EzS-NDR-60L-B | |
| Ezi-SERVO-PR-60L-A-PN15 | EzM-60L-A-PN15 | EzS-NDR-60L-A | 1:15 |
| Ezi-SERVO-PR-60L-B-PN15 | EzM-60L-B-PN15 | EzS-NDR-60L-B | |
| Ezi-SERVO-PR-60L-A-PN25 | EzM-60L-A-PN25 | EzS-NDR-60L-A | 1:25 |
| Ezi-SERVO-PR-60L-B-PN25 | EzM-60L-B-PN25 | EzS-NDR-60L-B | |
| Ezi-SERVO-PR-60L-A-PN40 | EzM-60L-A-PN40 | EzS-NDR-60L-A | 1:40 |
| Ezi-SERVO-PR-60L-B-PN40 | EzM-60L-B-PN40 | EzS-NDR-60L-B | |
| Ezi-SERVO-PR-60L-A-PN50 | EzM-60L-A-PN50 | EzS-NDR-60L-A | 1:50 |
| Ezi-SERVO-PR-60L-B-PN50 | EzM-60L-B-PN50 | EzS-NDR-60L-B | |
| Ezi-SERVO-PR-86M-A-PN3 | EzM-86M-A-PN3 | EzS-NDR-86M-A | 1:3 |
| Ezi-SERVO-PR-86M-B-PN3 | EzM-86M-B-PN3 | EzS-NDR-86M-B | |
| Ezi-SERVO-PR-86M-A-PN5 | EzM-86M-A-PN5 | EzS-NDR-86M-A | 1:5 |
| Ezi-SERVO-PR-86M-B-PN5 | EzM-86M-B-PN5 | EzS-NDR-86M-B | |
| Ezi-SERVO-PR-86M-A-PN8 | EzM-86M-A-PN8 | EzS-NDR-86M-A | 1:8 |
| Ezi-SERVO-PR-86M-B-PN8 | EzM-86M-B-PN8 | EzS-NDR-86M-B | |
| Ezi-SERVO-PR-86M-A-PN10 | EzM-86M-A-PN10 | EzS-NDR-86M-A | 1:10 |
| Ezi-SERVO-PR-86M-B-PN10 | EzM-86M-B-PN10 | EzS-NDR-86M-B | |
| Ezi-SERVO-PR-86M-A-PN15 | EzM-86M-A-PN15 | EzS-NDR-86M-A | 1:15 |
| Ezi-SERVO-PR-86M-B-PN15 | EzM-86M-B-PN15 | EzS-NDR-86M-B | |
| Ezi-SERVO-PR-86M-A-PN25 | EzM-86M-A-PN25 | EzS-NDR-86M-A | 1:25 |
| Ezi-SERVO-PR-86M-B-PN25 | EzM-86M-B-PN25 | EzS-NDR-86M-B | |
| Ezi-SERVO-PR-86M-A-PN40 | EzM-86M-A-PN40 | EzS-NDR-86M-A | 1:40 |
| Ezi-SERVO-PR-86M-B-PN40 | EzM-86M-B-PN40 | EzS-NDR-86M-B | |
| Ezi-SERVO-PR-86M-A-PN50 | EzM-86M-A-PN50 | EzS-NDR-86M-A | 1:50 |
| Ezi-SERVO-PR-86M-B-PN50 | EzM-86M-B-PN50 | EzS-NDR-86M-B | |
| Ezi-SERVO-PR-86L-A-PN3 | EzM-86L-A-PN3 | EzS-NDR-86L-A | 1:3 |
| Ezi-SERVO-PR-86L-B-PN3 | EzM-86L-B-PN3 | EzS-NDR-86L-B | |
| Ezi-SERVO-PR-86L-A-PN5 | EzM-86L-A-PN5 | EzS-NDR-86L-A | 1:5 |
| Ezi-SERVO-PR-86L-B-PN5 | EzM-86L-B-PN5 | EzS-NDR-86L-B | |
| Ezi-SERVO-PR-86L-A-PN8 | EzM-86L-A-PN8 | EzS-NDR-86L-A | 1:8 |
| Ezi-SERVO-PR-86L-B-PN8 | EzM-86L-B-PN8 | EzS-NDR-86L-B | |
| Ezi-SERVO-PR-86L-A-PN10 | EzM-86L-A-PN10 | EzS-NDR-86L-A | 1:10 |
| Ezi-SERVO-PR-86L-B-PN10 | EzM-86L-B-PN10 | EzS-NDR-86L-B | |
| Ezi-SERVO-PR-86L-A-PN15 | EzM-86L-A-PN15 | EzS-NDR-86L-A | 1:15 |
| Ezi-SERVO-PR-86L-B-PN15 | EzM-86L-B-PN15 | EzS-NDR-86L-B | |
| Ezi-SERVO-PR-86L-A-PN25 | EzM-86L-A-PN25 | EzS-NDR-86L-A | 1:25 |
| Ezi-SERVO-PR-86L-B-PN25 | EzM-86L-B-PN25 | EzS-NDR-86L-B | |
| Ezi-SERVO-PR-86L-A-PN40 | EzM-86L-A-PN40 | EzS-NDR-86L-A | 1:40 |
| Ezi-SERVO-PR-86L-B-PN40 | EzM-86L-B-PN40 | EzS-NDR-86L-B | |
| Ezi-SERVO-PR-86L-A-PN50 | EzM-86L-A-PN50 | EzS-NDR-86L-A | 1:50 |
| Ezi-SERVO-PR-86L-B-PN50 | EzM-86L-B-PN50 | EzS-NDR-86L-B | |
| Ezi-SERVO-PR-86XL-A-PN3 | EzM-86XL-A-PN3 | EzS-NDR-86XL-A | 1:3 |
| Ezi-SERVO-PR-86XL-B-PN3 | EzM-86XL-B-PN3 | EzS-NDR-86XL-B | |
| Ezi-SERVO-PR-86XL-A-PN5 | EzM-86XL-A-PN5 | EzS-NDR-86XL-A | 1:5 |
| Ezi-SERVO-PR-86XL-B-PN5 | EzM-86XL-B-PN5 | EzS-NDR-86XL-B | |
| Ezi-SERVO-PR-86XL-A-PN8 | EzM-86XL-A-PN8 | EzS-NDR-86XL-A | 1:8 |
| Ezi-SERVO-PR-86XL-B-PN8 | EzM-86XL-B-PN8 | EzS-NDR-86XL-B | |
| Ezi-SERVO-PR-86XL-A-PN10 | EzM-86XL-A-PN10 | EzS-NDR-86XL-A | 1:10 |
| Ezi-SERVO-PR-86XL-B-PN10 | EzM-86XL-B-PN10 | EzS-NDR-86XL-B | |
| Ezi-SERVO-PR-86XL-A-PN15 | EzM-86XL-A-PN15 | EzS-NDR-86XL-A | 1:15 |
| Ezi-SERVO-PR-86XL-B-PN15 | EzM-86XL-B-PN15 | EzS-NDR-86XL-B | |
| Ezi-SERVO-PR-86XL-A-PN25 | EzM-86XL-A-PN25 | EzS-NDR-86XL-A | 1:25 |
| Ezi-SERVO-PR-86XL-B-PN25 | EzM-86XL-B-PN25 | EzS-NDR-86XL-B | |
| Ezi-SERVO-PR-86XL-A-PN40 | EzM-86XL-A-PN40 | EzS-NDR-86XL-A | 1:40 |
| Ezi-SERVO-PR-86XL-B-PN40 | EzM-86XL-B-PN40 | EzS-NDR-86XL-B | |
| Ezi-SERVO-PR-86XL-A-PN50 | EzM-86XL-A-PN50 | EzS-NDR-86XL-A | 1:50 |
| Ezi-SERVO-PR-86XL-B-PN50 | EzM-86XL-B-PN50 | EzS-NDR-86XL-B |
Đại lý FASTECH vietnam, FASTECH viet nam, FASTECH vietnam distributor, Phân phối FASTECH tại việt nam
Đại lý FASTECH vietnam, FASTECH viet nam, FASTECH vietnam distributor, Phân phối FASTECH tại việt nam
Đại lý FASTECH vietnam, FASTECH viet nam, FASTECH vietnam distributor, Phân phối FASTECH tại việt nam
Đại lý FASTECH vietnam, FASTECH viet nam, FASTECH vietnam distributor, Phân phối FASTECH tại việt nam
Đại lý FASTECH vietnam, FASTECH viet nam, FASTECH vietnam distributor, Phân phối FASTECH tại việt nam
Reviews
There are no reviews yet.
