INFINEON FS150R06KE3

Description

INFINEON FS150R06KE3

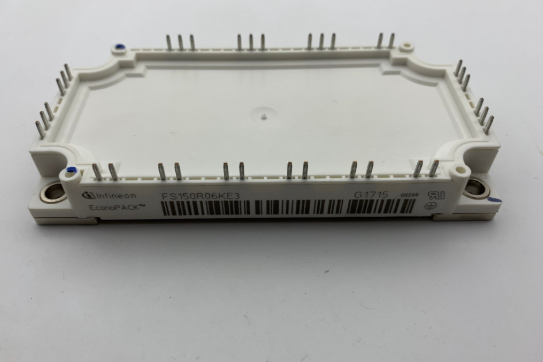

An Engineering Review of the FS150R06KE3 Sixpack Module

The FS150R06KE3 is a 600V, 150A sixpack IGBT module from Infineon, engineered to deliver high efficiency and reliability in a compact EconoPACK™ 3 footprint. This module integrates TrenchSTOP™ IGBT3 and Emitter Controlled 3 diode technologies to provide a finely tuned balance of conduction and switching performance. Its key specifications are: 600V Collector-Emitter Voltage | 150A DC Collector Current | 1.50V typical VCE(sat). The primary benefits include reduced overall system losses and simplified thermal management. For engineers designing high-frequency Variable Frequency Drives (VFDs), this module offers a clear path to achieving higher efficiency without compromising on reliability. For mid-power VFDs up to 40kW targeting high efficiency, the FS150R06KE3’s low VCE(sat) of 1.5V makes it a superior choice.

Highlighting Critical Specs for Performance-Oriented Design

The technical specifications of the FS150R06KE3 are foundational to its performance. The following table highlights the parameters most critical for power electronics design engineers.

Parameter	Value	Condition
Collector-Emitter Voltage (Vces)	600 V	Tj = 25°C
DC Collector Current (Ic nom)	150 A	Tc = 100°C
Collector-Emitter Saturation Voltage (VCEsat)	1.50 V (typ.) / 1.85 V (max.)	Ic = 150 A, Vge = 15 V, Tj = 25°C
Total Switching Energy (Ets)	15.00 mJ (typ.)	Ic = 150 A, Vce = 300V, Vge = ±15 V, Rg = 3.6 Ω, Tj = 125°C
Thermal Resistance, Junction-to-Case (Rth(j-c))	0.36 K/W (per IGBT)
NTC Thermistor	Yes, Integrated	R25 = 5 kΩ

Mã hàng:

FS75R06KE3

FS150R06KE3
