Description

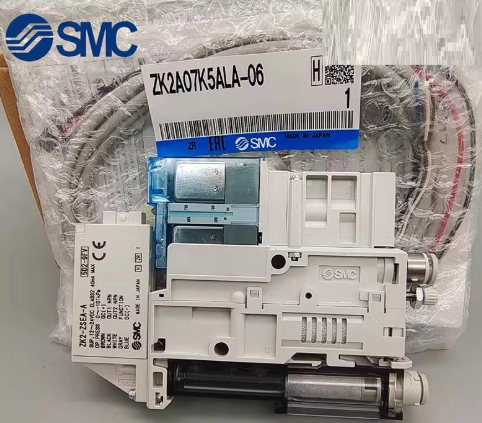

SMC ZK2A07K5ALA-06
SMC ZK2A07K5AL-06
SMC ZK2A07K5AL-06,ZK2A10K5ALA-06, ZK2A12K5AL-08
Product Description
A vacuum unit ejector system manufactured by SMC
[Features]
· Built-in digital pressure switch for vacuums, with energy-saving function. Cuts the air supply upon reaching vacuum: Leading to 90% reduction in air consumption
· Has a 2-stage ejector structure that increases suction flow rate by 50% and reduces air consumption by 30% (compared to SMC’s single-stage ejectors)
· Compact and lightweight, with a 28% reduction in volume (88 cm3) and a 59% reduction in weight (81 g) compared to conventional products
· Reduced wiring for single units as well as manifolding.
· Once the supply valve is switched ON, the vacuum generation state is maintained even if the power is cut off. This reduces power consumption.
Configured Specifications
| Type | Unit | Additional Function | Silencers / Filter / Valves For Vacuum Generation / Reverse Check Valve (Vacuum Retention) / With LED Display, Pressure Switch for Vacuum / Vacuum Destructive Valve |
|---|---|---|---|
| Ultimate Vacuum(kPa) | -91 | Air Consumption Flow Rate(l/min) | 24 |
| Vacuum Port Connecting Port Shape | One-Touch Coupling | Vacuum Port One-Touch Fitting Size | Ø6 |
| Air Supply Port Connecting Port Shape | One-Touch Coupling | Air Supply Port One-Touch Fitting Size | Ø6 |
| Application | Single Item | Operating Pressure Range(MPa) | 0.3～0.6 |
| Operating Temp. Range(°C) | -5～50 | Suction Flow(l/min) | 29 |
| Nozzle Dia. | 0.7mm | Exhaust specifications | Silencer exhaust |
| Exhaust port | – | Combination of supply valve and release valve | Supply valve (N.C.) / release valve (N.C.) |
| Rated voltage | 24 V DC | Electrical entry | L-type plug connector |
| Light/surge voltage suppressor | Yes | Manual | Non-locking type |
| Vacuum pressure sensor | Digital pressure switch for vacuum | Output specifications | NPN 2 outputs (0 to −101 kPa) |
| Unit specifications | With unit selection function | Lead wire specifications | Lead wire with connector |
| Accessories | With 1 bracket for single unit (mounting screws attached) | Vacuum switch electrical entry | With lead wire for sensors |
| Vacuum break flow adjusting needle | Round lock nut type | Options | – |
Các mã hàng tương tự ZK2A07K5AL-06 ZK2A07K5AL-08 ZK2A10K5AL-06 ZK2A10K5AL-08 ZK2A12K5AL-06 ZK2A12K5AL-08 ZK2A15K5AL-06 ZK2A15K5AL-08 ZK2A07K5ALA-06 ZK2A07K5ALA-08 ZK2A10K5ALA-06 ZK2A10K5ALA-08 ZK2A12K5ALA-06 ZK2A12K5ALA-08 ZK2A15K5ALA-06 ZK2A15K5ALA-08 ZK2A07K5NL2-06 ZK2A07K5NL2-08 ZK2A10K5NL2-06 ZK2A10K5NL2-08 ZK2A12K5NL2-06 ZK2A12K5NL2-08 ZK2A07K5KW-06 ZK2A10K5KW-06 ZK2A12K5KW-06 ZK2A10K5EL-06 ZK2A15K5RW-08 ZK2A15K5HL-08 ZK2A10K5CL-06 ZK2-ZSEA-A
