Description

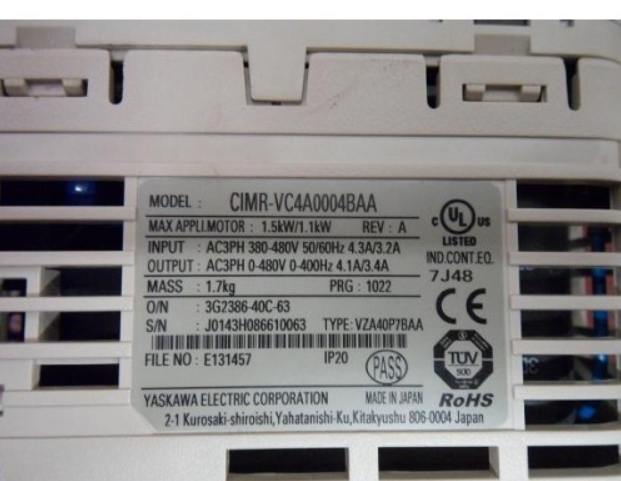

YASKAWA CIMR-VC4A0004BAA
Overview
The Yaskawa V1000 is a general-purpose AC drive covering the demands of a wide field of applications including Open-Loop-Vector functionality and the use of PM motors without feedback.
- High flux braking for 50% reduction of braking time
- Online Auto-Tuning to optimize for improved motor performance at low speed
- Open Loop Vector Control for PM motor operation
- Safe Disable Inputs for Safe Torque OFF
The Yaskawa V1000 is a general-purpose AC drive covering the demands of a wide field of applications including Open-Loop-Vector functionality and the use of PM motors without feedback.
- High flux braking for 50% reduction of braking time
- Online Auto-Tuning to optimize for improved motor performance at low speed
- Open Loop Vector Control for PM motor operation
- Safe Disable Inputs for Safe Torque OFF
Product Description:
The CIMR-VC4A0004BAA is a DRIVE 1.5KW VARIABLE FREQUENCY that is manufactured by Yaskawa. These products are manufactured in Japan and are designed for Advanced manufacturing, milling, and factory automation usage.
For energy saving, permanent magnet motor control is possible
Selectable control method: open-loop current vector or V/f
Small Design – Big Power: 150% overload in heavy duty service is possible. For applications with low overload requirements the drive can be operated with 120% overload in normal duty service. Consequently you can use a drive of smaller size to do the work of a bigger one.
Technical Details
- Input power supply
- 400 V
- Rated output current (HD)
- 3.4 A
- Rated output current (ND)
- 4.1 A
- Overload Tolerance (ND)
- 120 % for 60 s
- Overload Tolerance (HD)
- 150 % for 60 s
- Max. applicable motor power (HD)
- 1.1 kW
- Max. applicable motor power (ND)
- 1.5 kW
- Input power phases
- 3-phase
- Motor type
- Permanent magnet motor, Induction motor
- Standards compliance
- cUL, CE, RoHS, UL, UKCA
- Ambient Temperature (Min)
- -10 °C
- Ambient Temperature (Max)
- 50 °C
- Max. Humidity (non-condensing)
- 95 %
- Max. Altitude (without Derating)
- 1000 m
- Max. Altitude (with Derating)
- 3000 m
- Height
- 128 mm
- Width
- 108 mm
- Depth
- 137.5 mm
- Weight
- 1.7 kg
- Cooling method
- Coldplate, Air cooling
- Enclosure
- IP20/UL Open Type
- Environmental Specifications
- Standard
- Analog Input
- 2
- Analog Output
- 1
- Digital Input
- 6
- Digital Output
- 3
- Safety Level
- SIL2
- Performance Level
- PL d
- Torque Control
- Not available
- Braking transistor
- External
- Motor Thermal Protection
- Standard
- Max Output Frequency
- 400 Hz
