Description

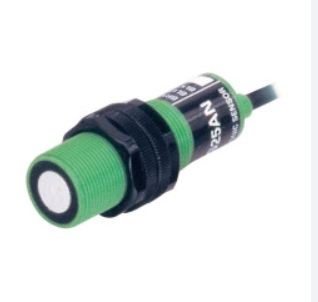

TAKEX US-7962AN
US-S25AN
US SERIES
- Ultrasonic sensor embedded with amplifier and comparator
- Hybrid type, which can generate analogue output and comparator output at the same time
- Easy to aim at the object due to narrow operation area
- Realizing high resolution (1mm=10mV) with original circuirt
- Handy M18 cylinder
- Integrated amplifier for easy adjustment
- Easy alignment with sharp narrow view
- Low cost and versatile miniature ultrasonic sensor with analog output
US-S25AN
Thông số kỹ thuật :
| Detection method | Ultrasonic reflective |
| Detecting distance | 60 – 250mm |
| Detection object | 30 x 30 (sample object: 1 thick aluminum plate) |
| Power supply | 24V DC ±10% / Ripple 10% or less |
| Current consumption | 25mA or less |
| Response time | 10 → 2 V: 30 ms or less / 2 → 10 V: 300 ms or less |
| Output mode | Voltage output in proportion to distance, 60mm:2.4V±0.5V, 250mm:10.0V±0.5V |
| Minimum resolution | 2 mm (with 80 mV ripple) * |
| Linearity | ±5% of F.S. or less |
| Temperature characteristics | 0.09% of F.S./ C |
| Ultrasonic frequency | 380kHz ±15kHz |
| Indicator | Not provided |
| Material | Case/nut : Polycarbonate |
