VIATRAN 5705BPSX1052

Category: Tags: , ,

Description

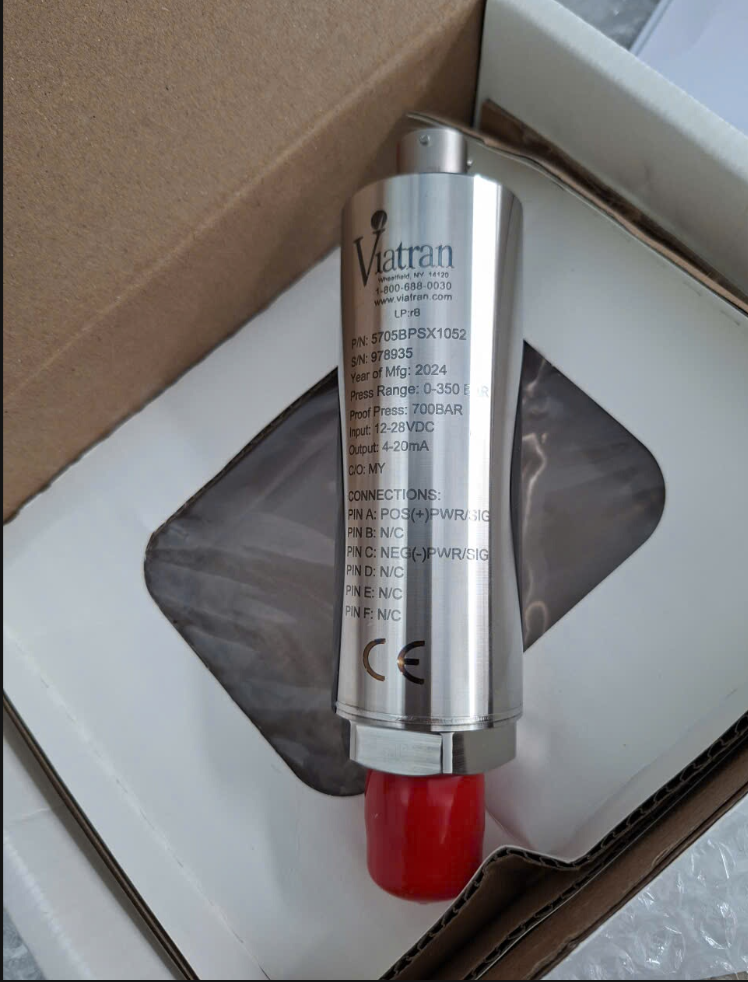

VIATRAN 5705BPSX1052

  • Dải đo áp suất: 0 đến 15,000 PSI (tùy chọn dải áp suất khác theo yêu cầu)
  • Loại cảm biến: Cảm biến áp suất dạng điện trở biến thiên (strain gauge-based sensor)
  • Độ chính xác: ± 0.25% FS (Full Scale) hoặc cao hơn theo yêu cầu
  • Ngõ ra tín hiệu: 4-20 mA
  • Nguồn cấp: 10-36 VDC
  • Nhiệt độ hoạt động: -40°C đến +85°C
  • Vật liệu vỏ: Thép không gỉ 316
  • Cấp bảo vệ: IP67
  • Kết nối quá trình: 1/4” NPT (hoặc tùy chọn)
  • Ứng dụng: Công nghiệp dầu khí, xử lý hóa chất, các hệ thống điều khiển áp suất công nghiệp.

Cảm biến áp suất Viatran 5705BPSX1052

4-20 mA, 0-100 psi đến 100K psi, đạt tiêu chuẩn sử dụng vùng cháy nổ.
Dòng 570 cung cấp một giải pháp chắc chắn, kín cho các môi trường được xếp hạng nguy hiểm và khắc nghiệt.

Tất cả kết cấu hàn và bề mặt thép không gỉ làm cho 570 lý tưởng cho môi trường ăn mòn. Thiết kế không có vòng chữ O của máy phát đảm bảo độ tin cậy với môi trường ăn mòn. Các thiết bị được dán nhãn đã được phê duyệt. Của Viatran 570 FM. Được thiết kế để đáp ứng các yêu cầu về Con dấu Kép của NEC / API. Đối với các môi trường ăn mòn nhất. Các bộ phận được làm ướt Hastelloy, Inconel và 316 SS có sẵn.

Một số part no cảm biến áp suất Viatran :

Part Description
5705BFSNYTF 0 – 5000 PSIS, 4 – 20 mA output, 1/2″ NPT male conduit connection with 72″ leads, 1/4″ NPT female pressure connection, FM Explosion Proof Approval, FM Intrinsically Safe Approval.
5705BPSTF 0 – 15000 PSIS, 4 – 20 mA output, 1/2″ NPT male conduit connection with 72″ leads, 1/4″ NPT female pressure connection, FM Intrinsically Safe Approval.
5705ARSNHNYTF 0 – 300 PSIS, 4 – 20 mA output, 1/2″ NPT male conduit connection with 72″ leads, 1/4″ NPT female pressure connection, Optional customer information, FM Explosion Proof Approval, FM Intrinsically Safe Approval.
5705BFSBHNKTF 0 – 5000 PSIS, 4 – 20 mA output, Amphenol 6-pin electrical connector, 1/4″ NPT female pressure connection, ATEX Intrinsically Safe Approval, FM Intrinsically Safe Approval.
5705BFSNKNYNZ 0 – 5000 PSIS, 4 – 20 mA output, 1/2″ NPT male conduit connection with 72″ leads, 1/4″ NPT female pressure connection, ATEX Intrinsically Safe Approval, FM Explosion Proof Approval, FM Non-Incendive Approval.
5705BPSNKNYNZTF 0 – 15000 PSIS, 4 – 20 mA output, 1/2″ NPT male conduit connection with 72″ leads, 1/4″ NPT female pressure connection, ATEX Intrinsically Safe Approval, FM Explosion Proof Approval, FM Non-Incendive Approval, FM Intrinsically Safe Approval.
5705BFSNYNZTF 0 – 5000 PSIS, 4 – 20 mA output, 1/2″ NPT male conduit connection with 72″ leads, 1/4″ NPT female pressure connection, FM Explosion Proof Approval, FM Non-Incendive Approval, FM Intrinsically Safe Approval.
5705BCSNK 0 – 3000 PSIS, 4 – 20 mA output, 1/2″ NPT male conduit connection with 72″ leads, 1/4″ NPT female pressure connection, ATEX Intrinsically Safe Approval.
5705ARSNX 0 – 300 PSIS, 4 – 20 mA output, 1/2″ NPT male conduit connection with 72″ leads, 1/4″ NPT female pressure connection, CSA Intrinsically Safe Approval.

Phụ kiện của cảm biến áp suất Viatran 5705BPSX1052:

004102.013 Polypropylene Mounting Bracket – Fits 1 1/2″ Diameter Models
003633.002 Mounting Bracket- For 2″ Pipe, Fits 1 1/2″ diameter models
004016.002 Mounting Bracket-Fits 1 1/2″ diameter models
DL-AC-S4NE Dual line 6 digit analog input process meter, mating cable assembly option available, not required if transmitter is equipped with leads or cable connection.



Model 24B Pressure Transducer

0-5 Vdc output, 0-100 to 0-30K psi, Solid Machined Sensor

Viatran’s 24B is one of our most versatile pressure transducers for industrial applications. The 24B measures from 0-100 PSI to 0-30,000 PSI with standard linearity of ≤ ±0.25% FSO.

Model 34B Pressure Transmitter

4-20 mA output, 0-100 to 0-30K psi, Solid Machined Sensor

Viatran’s 34B is one of our most versatile pressure transducers for industrial applications. The 34B measures from 0-100 PSI to 0-30,000 PSI with standard linearity of ≤ ±0.25% FSO.

Model 245 Pressure Transmitter High Range

0-7500 thru 100K psi, 0-5Vdc output, 0.15% accuracy

Viatran’s Model 245 High Range pressure sensor is among our most accurate pressure transmitters for industrial test and research applications at higher pressures. Improved accuracies are available, as well as improved temperature performance.

Model 345 Pressure Transmitter High Range

0-7500 thru 100K psi, 4-20 mA output, 0.15% accuracy

Viatran’s Model 345 High Range pressure sensor is among our most accurate pressure transmitters for industrial test and research applications at higher pressures. Improved accuracies are available, as well as improved temperature performance.

Model 249 Pressure Transmitter

Durable, dependable, accurate

Viatran’s “49” series is a robust, highly accurate pressure transmitter designed for the severe environments found in aerospace, engine test and fluid power control applications.

Model 349 Pressure Transmitter

Durable, dependable, accurate

Viatran’s “49” series is a robust, highly accurate pressure transmitter designed for the severe environments found in aerospace, engine test and fluid power control applications.

Model 570 Pressure Transmitter

4-20 mA, 0-100 psi thru 100K psi, Hazardous Approvals

570 provides a rugged, sealed solution for hazardous rated and harsh environments.

Model RM570
Pressure Transmitter

4-20 mA, 0-100 Bar thru 0-350 Bar

RM 570 transmitters provide a rugged, sealed solution for the harsh industrial environments found in Rolling Mills and the metals industry.

Model 770 Pressure Transmitter

0-5 Vdc output, Hazardous Location Approvals, 0-100 thru 100K psi

770 uses a solid machined diaphragm sensor, which provides excellent durability and repeatability. 770 has both IS and Explosion Proof approvals, and can measure pressures up to 100K psi. A wide variety of wetted surface materials, process connections and electrical connections are available, and special wiring configurations are easily accommodated.

Model 870 Pressure Transmitter

mv/V output, 0-100 thru 100K psi, Hazardous Location Approvals

870 employs a solid machined diaphragm sensor which provides a rugged and reliable solution with excellent repeatability and resistance to pressure spikes. 870 hazardous approval options include Intrinsically safe and Explosion proof for US, Canada and Atex.

Model 571 Pressure Transmitter

Sealed External Adjustment, Hazardous Approvals, 0-100 thru 100K psi

571 is Viatran’s answer to the requirement for Hazardous Location approvals with external sealed adjustments. 571 is rangeable, offering the user flexibility if measuring different pressure levels.

345AFGX1126D Viatran

222AMAYC Viatran

222AUAYC Viatran

122AFAX2275 Viatran

510BPS Viatran

245AKGX748E Viatran

510BGSX651 Viatran

Đại lý VIATRAN vietnam, VIATRAN viet nam, VIATRAN vietnam distributor, Phân phối VIATRAN tại việt nam

Đại lý VIATRAN vietnam, VIATRAN viet nam, VIATRAN vietnam distributor, Phân phối VIATRAN tại việt nam

Đại lý VIATRAN vietnam, VIATRAN viet nam, VIATRAN vietnam distributor, Phân phối VIATRAN tại việt nam
